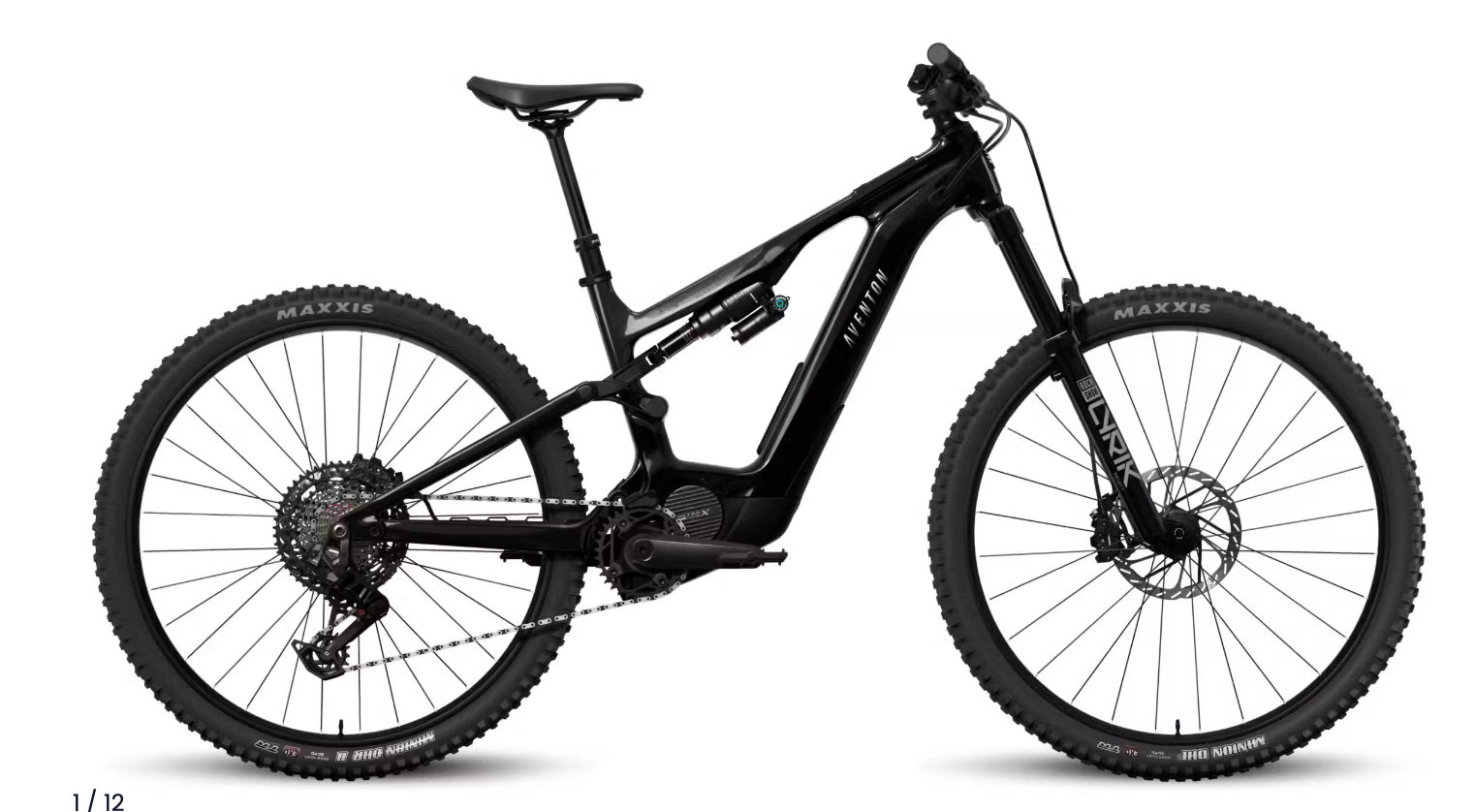

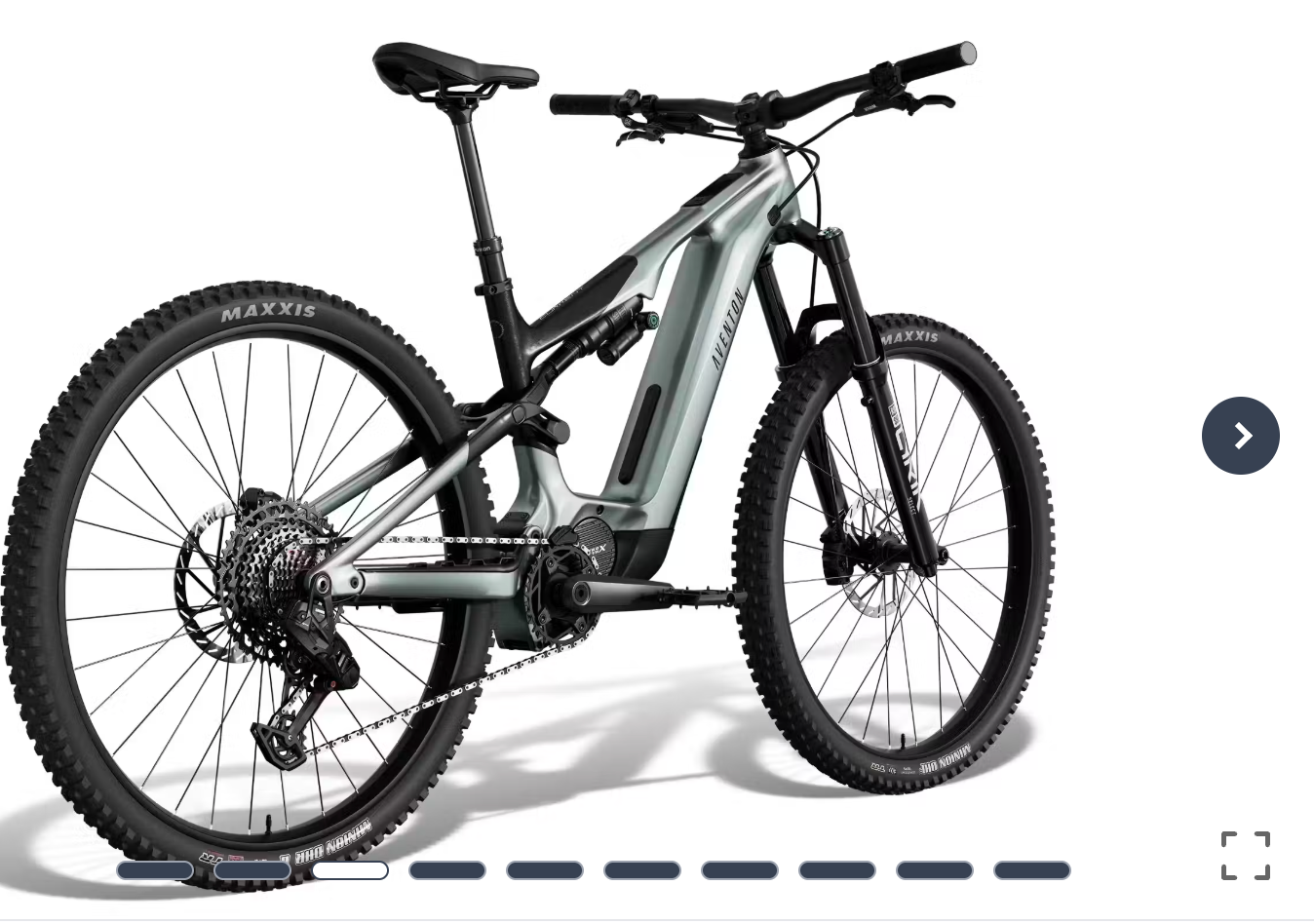

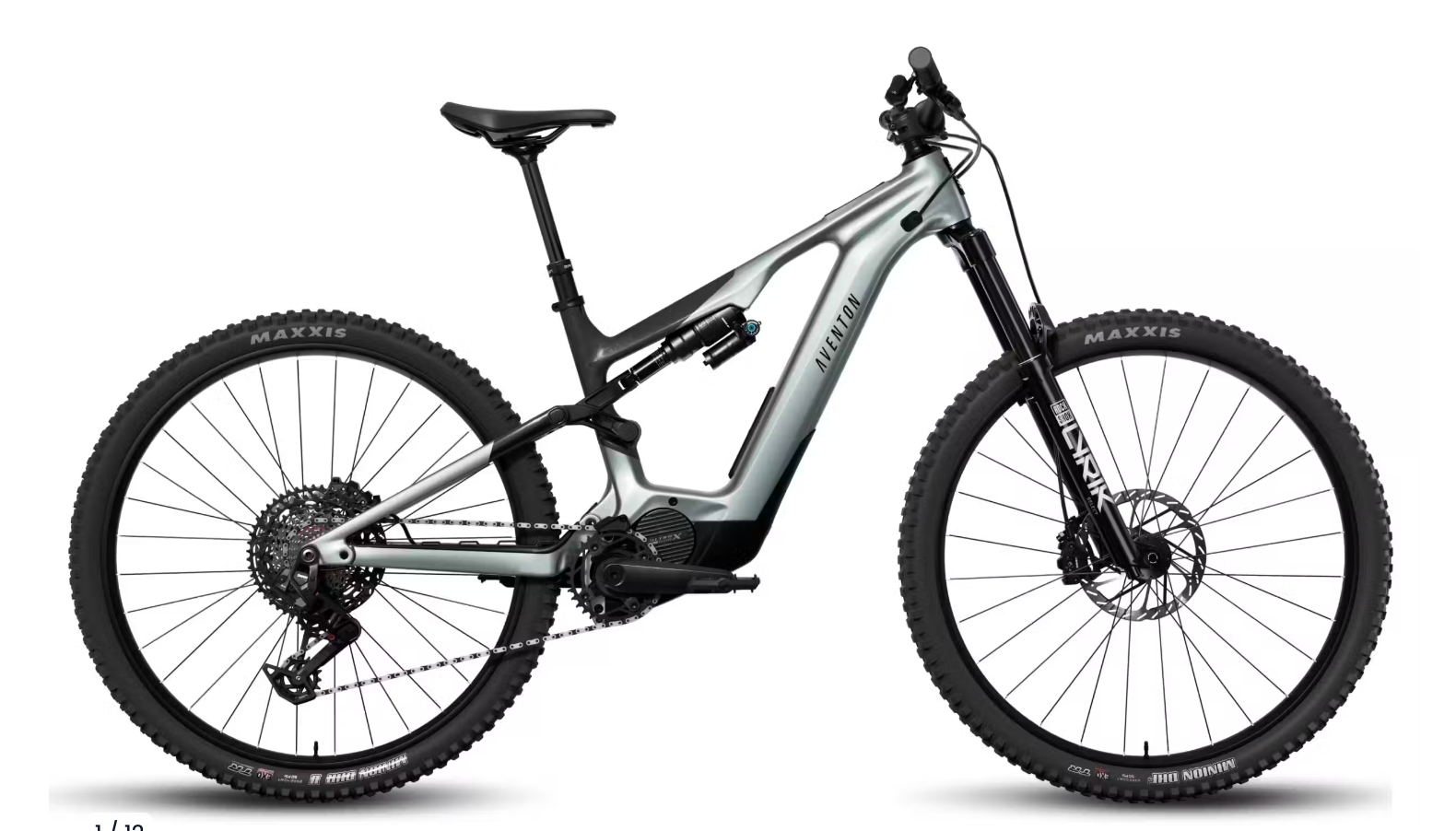

Aventon Current EXP Electric Full Suspension Mountain Bike
WEIGHT
53 lbs
TOTAL WEIGHT LIMIT
300 lbs
RIDER HEIGHT
5'1" - 6'3"
SPEED
Class 1 (Convertible to Class 3)
RANGE
Up To 105 Miles
WATER RESISTANCE
Bike - IPX6 // Motor - IP67
FRAMESET
FRAME
Carbon Front Triangle, 6061 Aluminum Rear Triangle
FORK
Rockshox Lyrik Select 150mm (44mm Offsett)

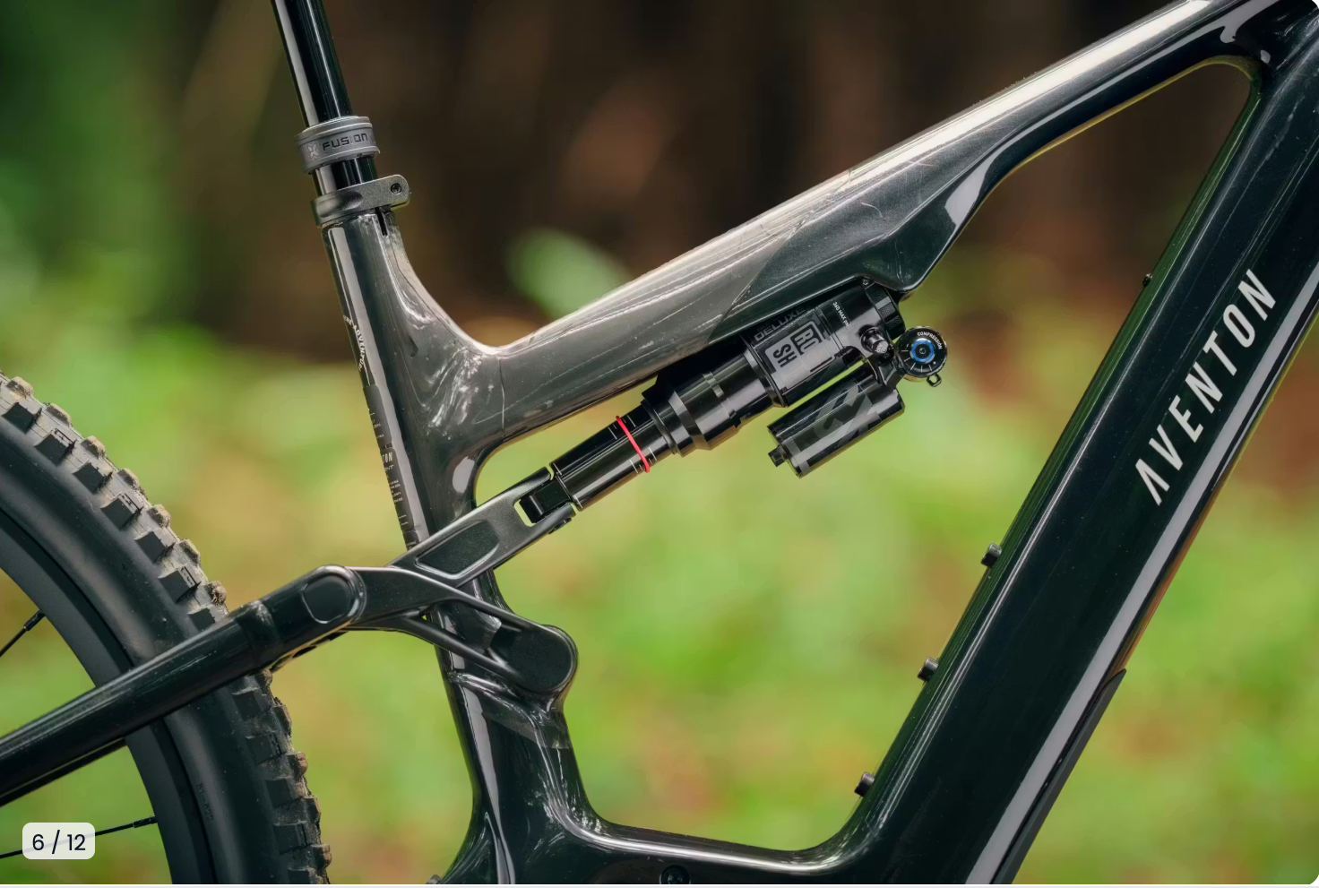

SHOCK
Rockshox Super Deluxe Select+ (210x55)
REAR SPACING
12x148mm
FORK SPACING
15x110mm
EBIKE SYSTEM

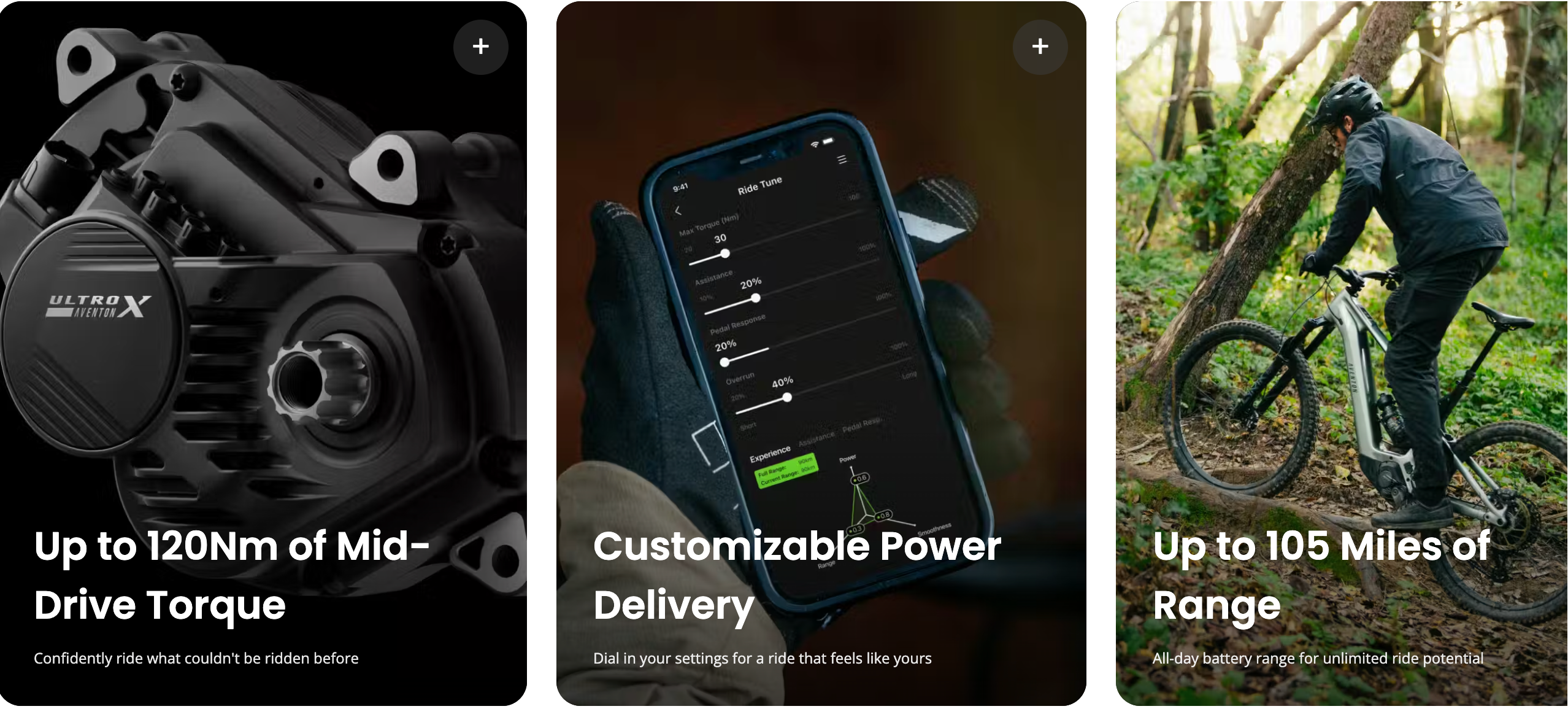

MOTOR
Aventon Ultro X
MOTOR TORQUE
110Nm (120NM in BOOST Mode)
MOTOR POWER
750W Peak (850W Peak in BOOST Mode)
SUPPORT LEVEL PERCENTAGE
400% (500% in BOOST Mode)

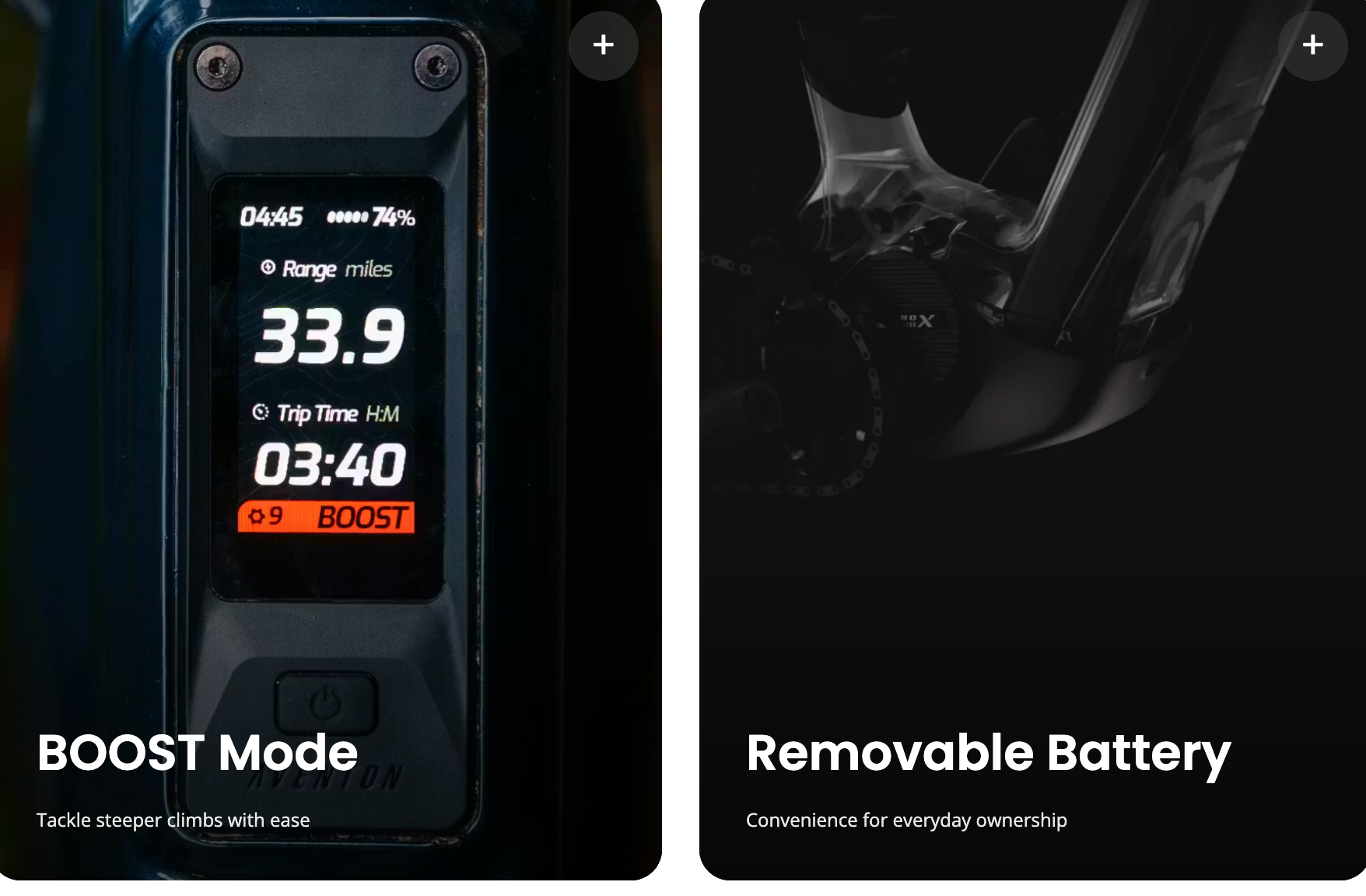

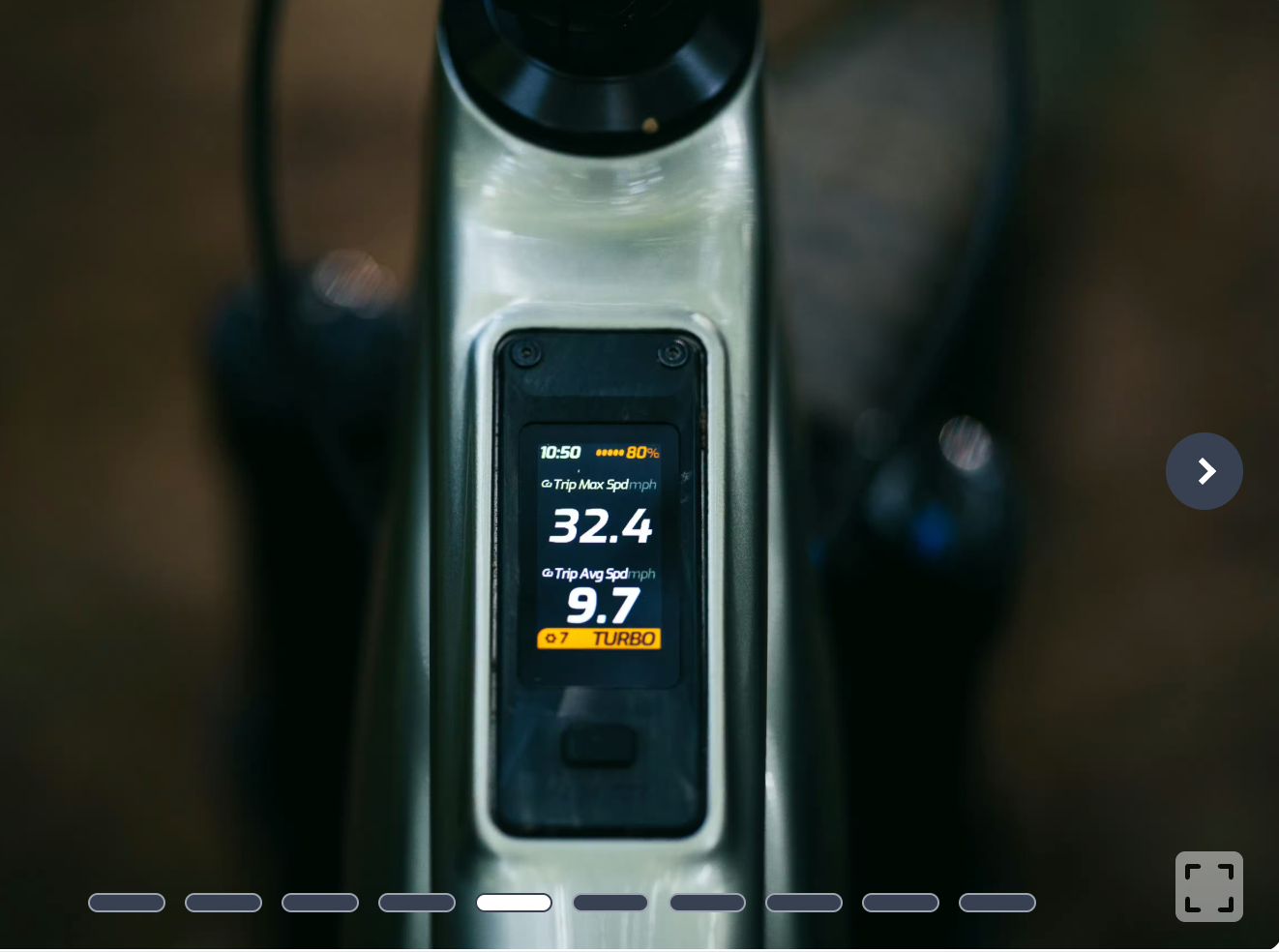

DISPLAY
Integrated Top Tube Display with Touch Screen
BATTERY
800Wh Integrated Battery
BATTERY WEIGHT
9.2 lbs
CHARGING TIME FROM 0% TO 100%
6 hours
CHARGER
42V 4A charger
SMART FEATURES
Jump Tracking, Overrun, Wheel Lift Control, 4G/GPS, Anti-Theft, Touchscreen, BOOST mode, and AUTO Assist mode

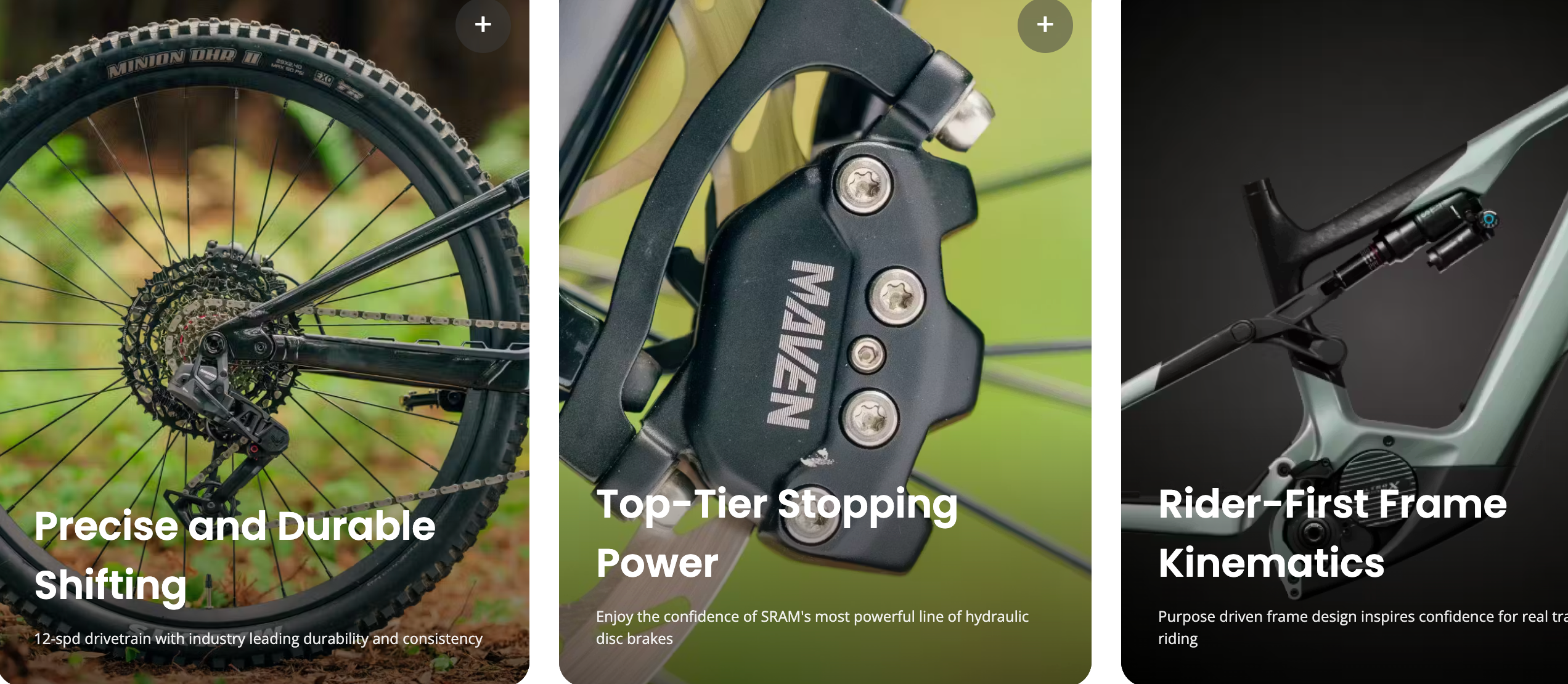

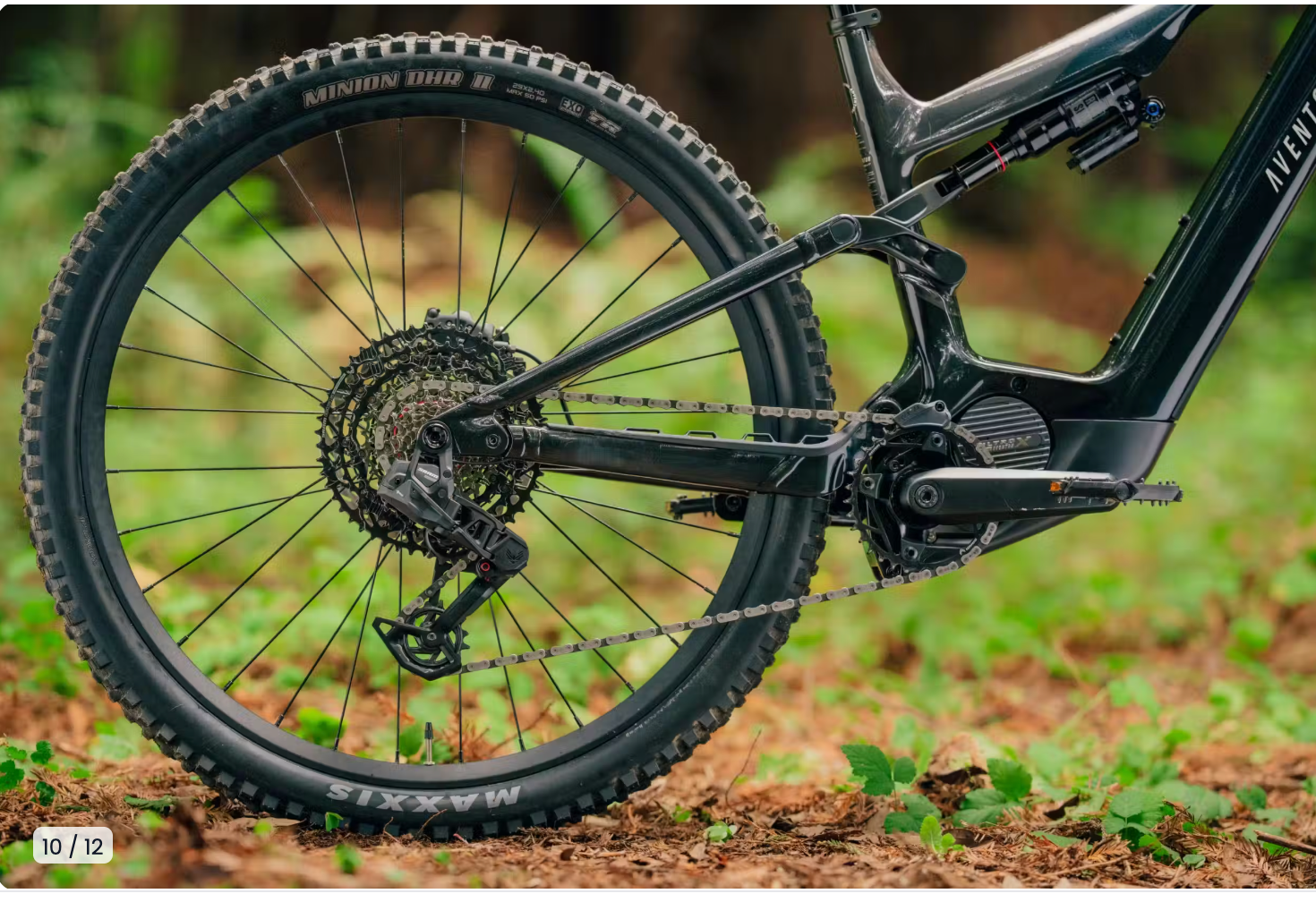

DRIVETRAIN
REAR DERAILLEUR
SRAM S1000 Transmission (12-SPD)
SHIFTER
SRAM AXS Transmission Shift Pod
CHAIN
SRAM Eagle 70 Transmission
CHAIN GUIDE
32-34T Compatible
CASSETTE
SRAM XS-1270 T-Type 10-52T
CHAINRING
SRAM T-Type 34T
CHAINRING BCD
104
CRANKSET
ISIS 160mm
PEDALS
9/16" Alloy Platform
WHEELSET
FRONT WHEEL
29", Double-Wall Aluminum, Tubeless Compatible, 32 Hole
REAR WHEEL
29", Double-Wall Aluminum, Tubeless Compatible, 32 Hole

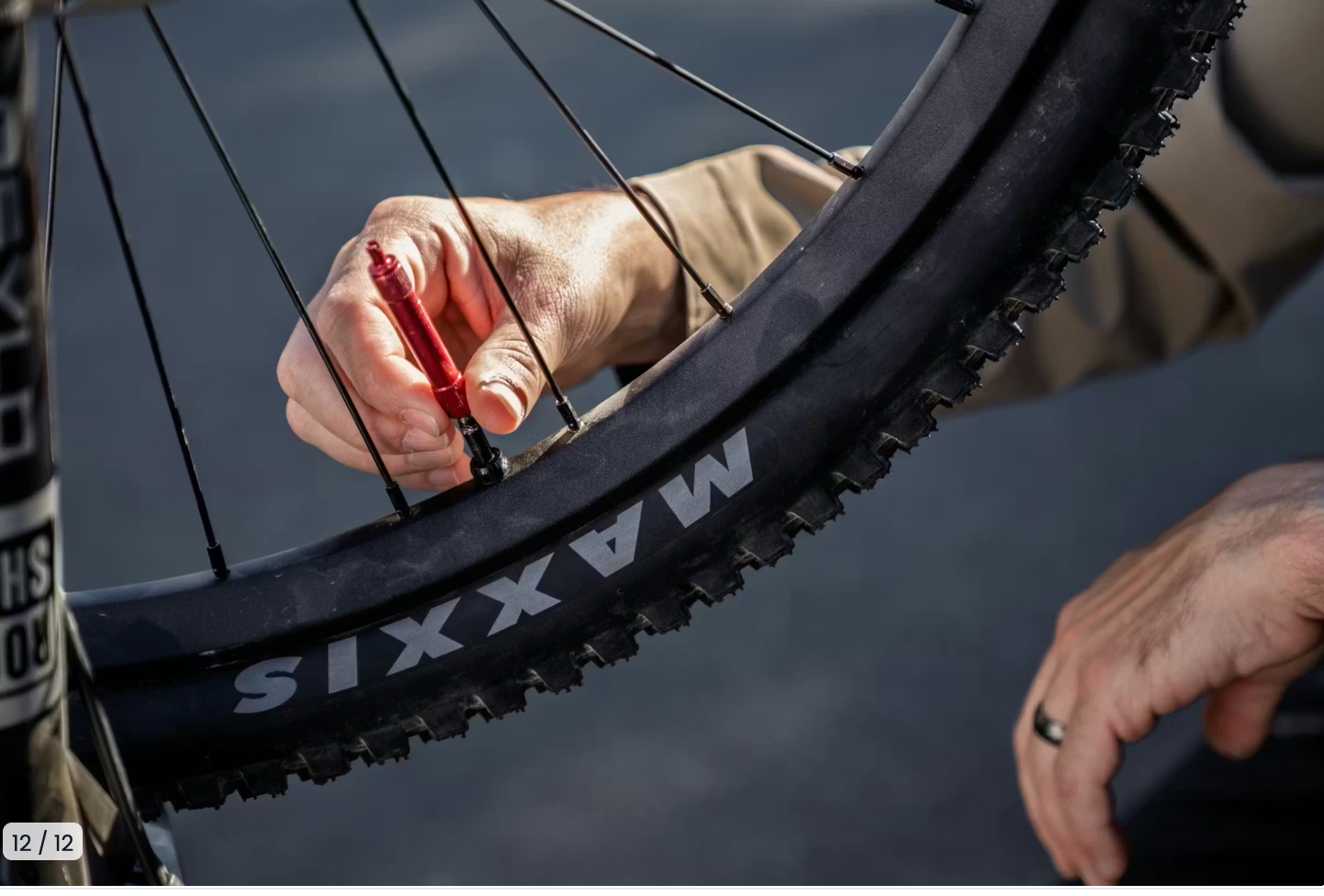

TIRES
Front: Maxxis Minion DHF 29x2.5" EXO (Tubeless Ready), Rear: Maxxis Minion DHR II, 29x2.4" EXO (Tubeless Ready)
BRAKES
FRONT BRAKE
SRAM Maven Base (Hydraulic, 4-Piston)
REAR BRAKE
SRAM Maven Base (Hydraulic, 4-Piston)
FRONT BRAKE ROTOR
SRAM Centerline 200mm 6-Bolt
REAR DERAILLEUR
SRAM Centerline 200mm 6-Bolt
COCKPIT
SADDLE
Selle Royal SRX
SEATPOST
31.6mm XFusion Manic Dropper Seatpost. S/M: 150mm, L/XL: 170mm
SEATPOST CLAMP
34.9mm
STEM
50mm Length, 35mm Clamp
HANDLEBARS
35mm Clamp, 5° Upsweep, 7° Backsweep. S/M: 780mm, 20mm Rise. L/XL: 800mm, 30mm Rise
HEADSET
ZS56 Upper/Lower
GRIPS
Aventon Lock on grips
