Aventon Level 4 ADV Mid-Drive Step Over Electric Bike WEIGHT 61lbs TOTAL WEIGHT LIMIT 300 lbs RIDER HEIGHT Medium - 5'3"-5'10". || Large - 5'10"-6'4". || Extra Large - 6'4"-6'7" EBIKE CLASS Class 1 (Convertible to Class 2 and/or...

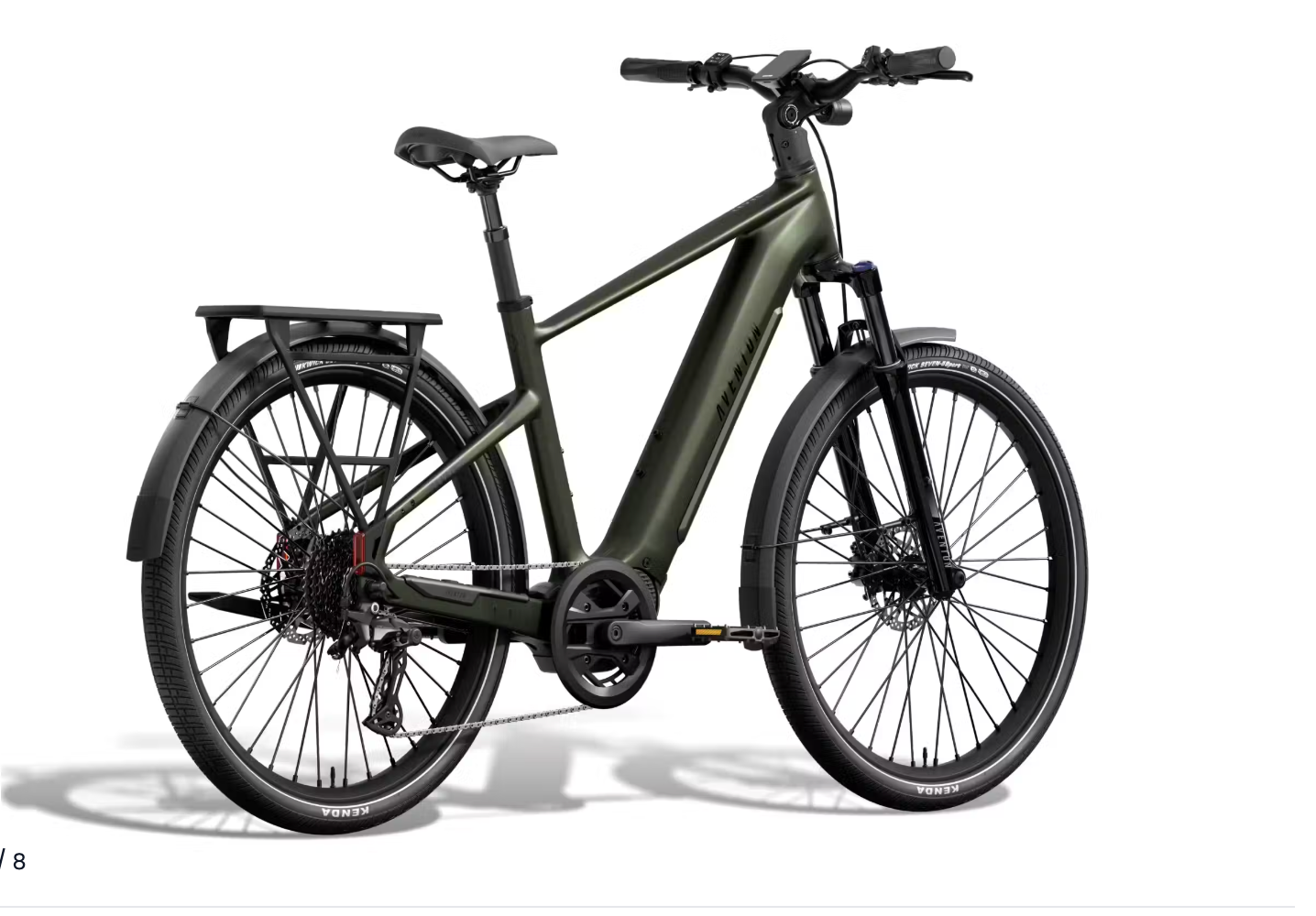

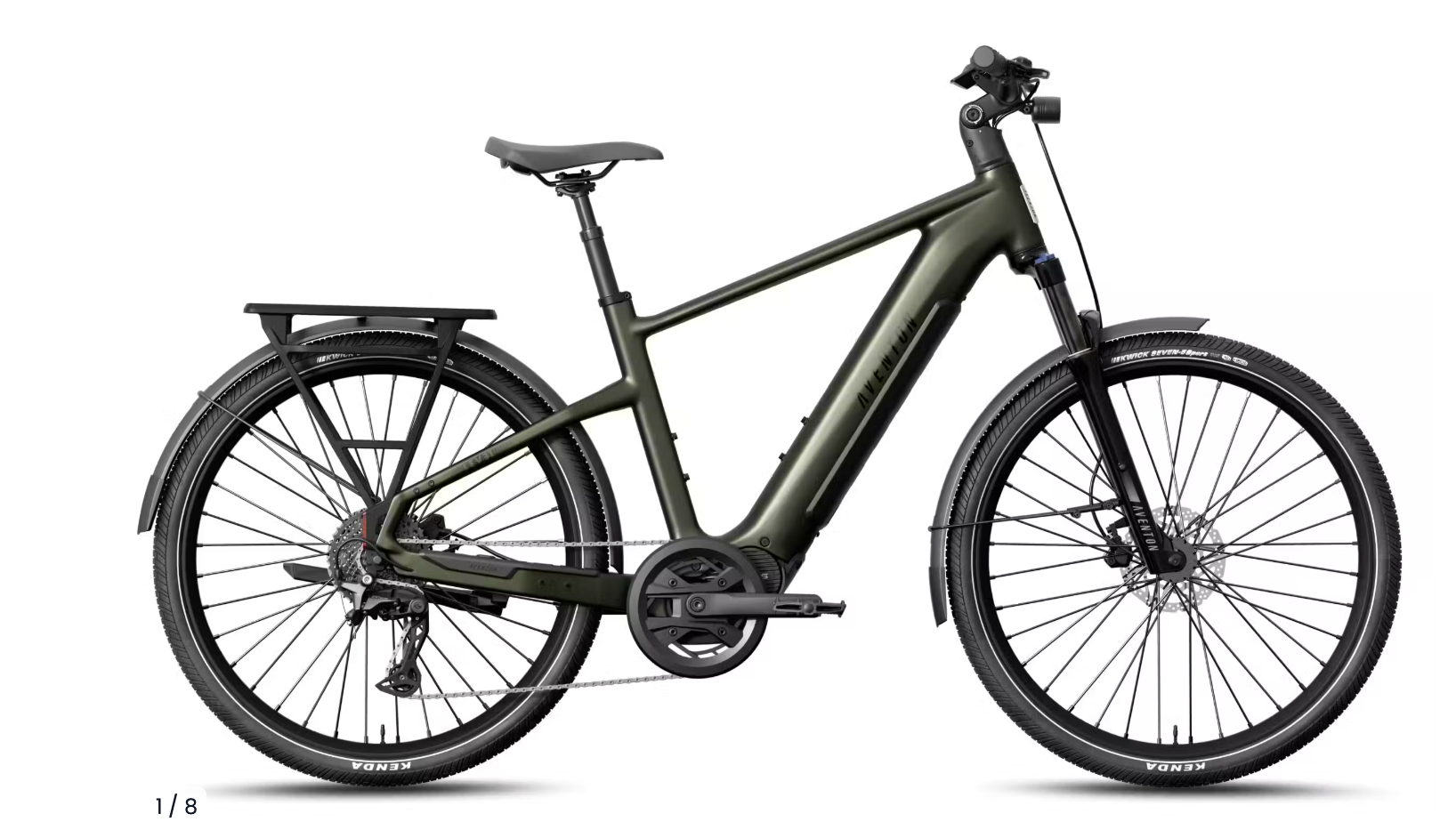

Aventon Level 4 ADV Mid-Drive Step Over Electric Bike
WEIGHT
61lbs
TOTAL WEIGHT LIMIT
300 lbs
RIDER HEIGHT
Medium - 5'3"-5'10". || Large - 5'10"-6'4". || Extra Large - 6'4"-6'7"
EBIKE CLASS
Class 1 (Convertible to Class 2 and/or Class 3)
WATER RESISTANCE
Bike - IPX6 // Motor - IP67
RANGE
Up to 110 Miles
SAFETY CERTIFICATIONS
BATTERY SAFETY CERTIFICATIONS
FRAMESET
FRAME
6061 Aluminum
FORK
100 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, 15x100 mm Thru Axle, 43 mm Offset, Tapered Steerer Tube
REAR SPACING
135mm
FORK SPACING
100mm
WHEELSET
FRONT WHEEL
27.5" Double Wall Aluminum, 36H
REAR WHEEL
27.5" Double Wall Aluminum, 36H
TIRES
Kenda K1052, 27.5x2.2"
EBIKE SYSTEM
MOTOR

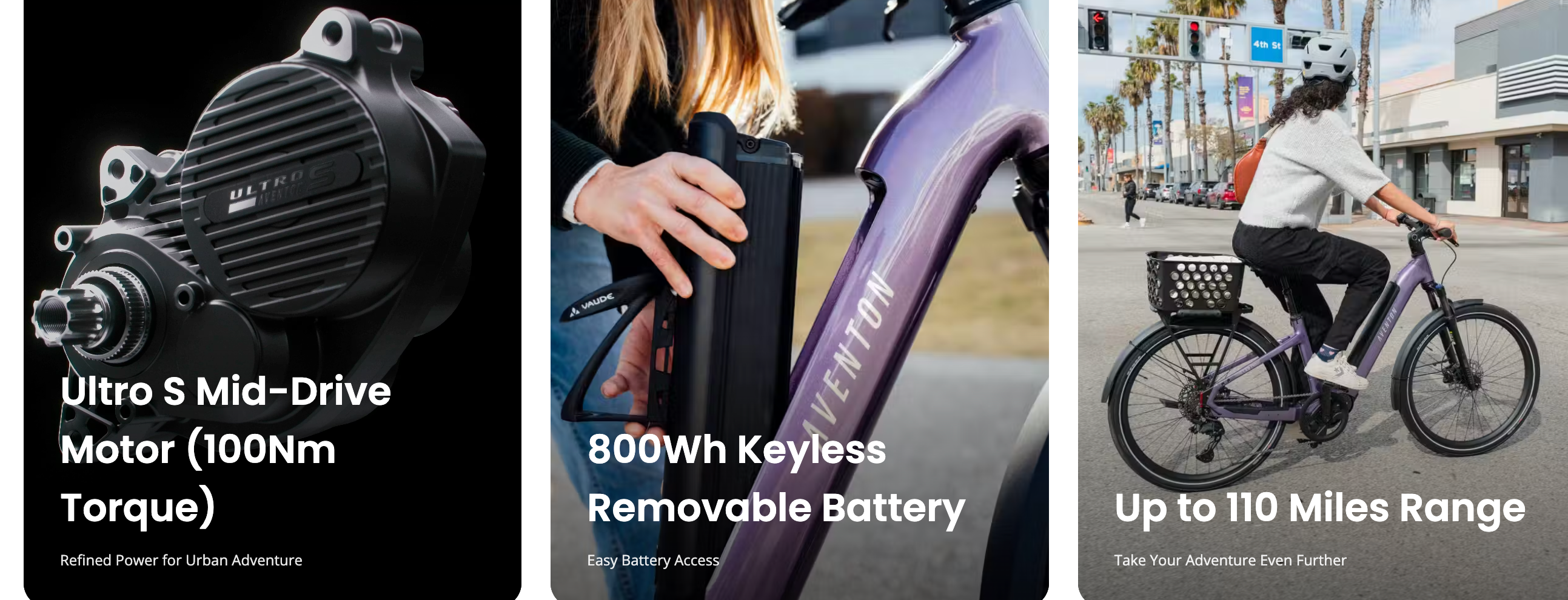

Aventon Ultro S Mid-drive Motor, 100Nm Motor Torque, 750W Peak Power
MOTOR TORQUE
100Nm
MOTOR POWER
750W Peak
DISPLAY
A280 Center Display
BATTERY
Removable Lithium-Ion. 36V, 20Ah, 800Wh, Samsung 21700 58E cells
BATTERY WEIGHT
8.7lbs
THROTTLE
Compatible, Not Included
CHARGER
42V 4A charger
CHARGING TIME FROM 0% TO 100%
5 hours
LIGHTS
Front and rear lights integrated
SMART FEATURES
Uphill Start Assist, E-Shift, Autoshift, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification
BRAKES
FRONT BRAKE
Tektro HD-M3120 2-Piston Hydraulic Disc Brakes
REAR BRAKE
Tektro HD-M3120 2-Piston Hydraulic Disc Brakes
FRONT BRAKE ROTOR
180mm 6 bolt
REAR BRAKE ROTOR
180mm 6 bolt
BRAKES
Hydraulic
DRIVETRAIN
REAR DERAILLEUR
Shimano Cues 10-Speed
CHAINRING
48T
CRANKSET
165mm ISIS Splined
PEDALS
9/16" Composite Platform
SHIFTER
E-Shifter
CHAIN
9/10/11 speed 126L
CASSETTE
Shimano Cues 10-Speed 11-39T
COCKPIT
SADDLE
Aventon Saddle
SEATPOST
Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length
SEATPOST CLAMP
34.9mm
HANDLEBARS
31.8mm, 680mm Width, 30mm Rise
GRIPS
Aventon Lock on grips
INCLUDED ACCESSORIES
REAR RACK
Included
FENDERS
Included
INTEGRATED LIGHTS
WARRANTY - 2 YEARS
