Urtopia Carbon  Classic Step Thru Electric Bike

BONUS - FREE Fender and Kickstand

Model

Carbon Classic Step-Thru E-bike

Net Weight

38 lbs w/o acc.

Material

Carbon fiber (frame, fork)

Range

Up to 75 miles

*The 75-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads.

Top Speed

20mph by default

25mph upon unlock

Total Weight Limit

240 lbs

Rider Height

SMALL  5’3’ - 5'9’’ 30" inseam

MEDIUM  5’7’ - 6'1’’ 31" inseam

LARGE  5’11’ - 6'5’’ 33" inseam

Brakes

TEKTRO hydraulic disc brake with power cut-off sensor

Wheels

700C (ISO 622mm BSD), 40C (45C max.) tires, puncture-proof tire

Water Resistance

IP65

Class

Class 2

Motor

750W (peak) rear hub, 60Nm

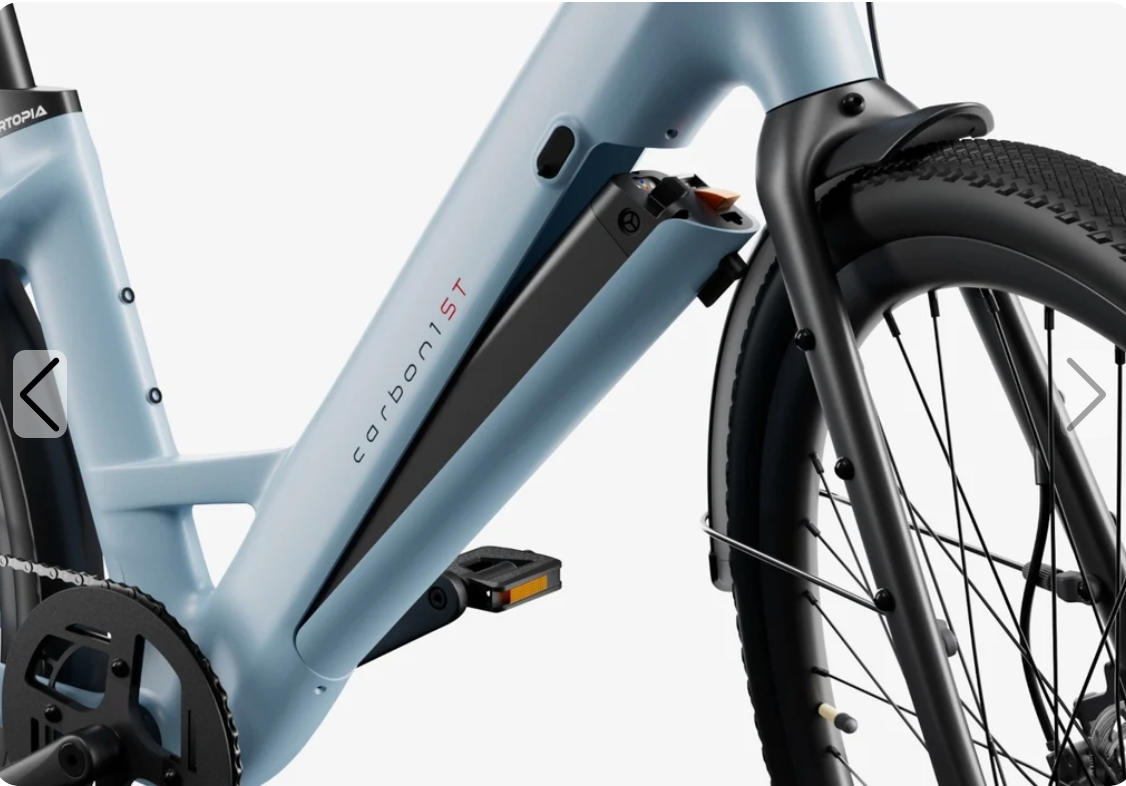

Battery

352.8Wh Samsung Li-ion, certified to UL-2271, removable battery

Pedal Assist

4 levels

Charger

2.5H fast charger

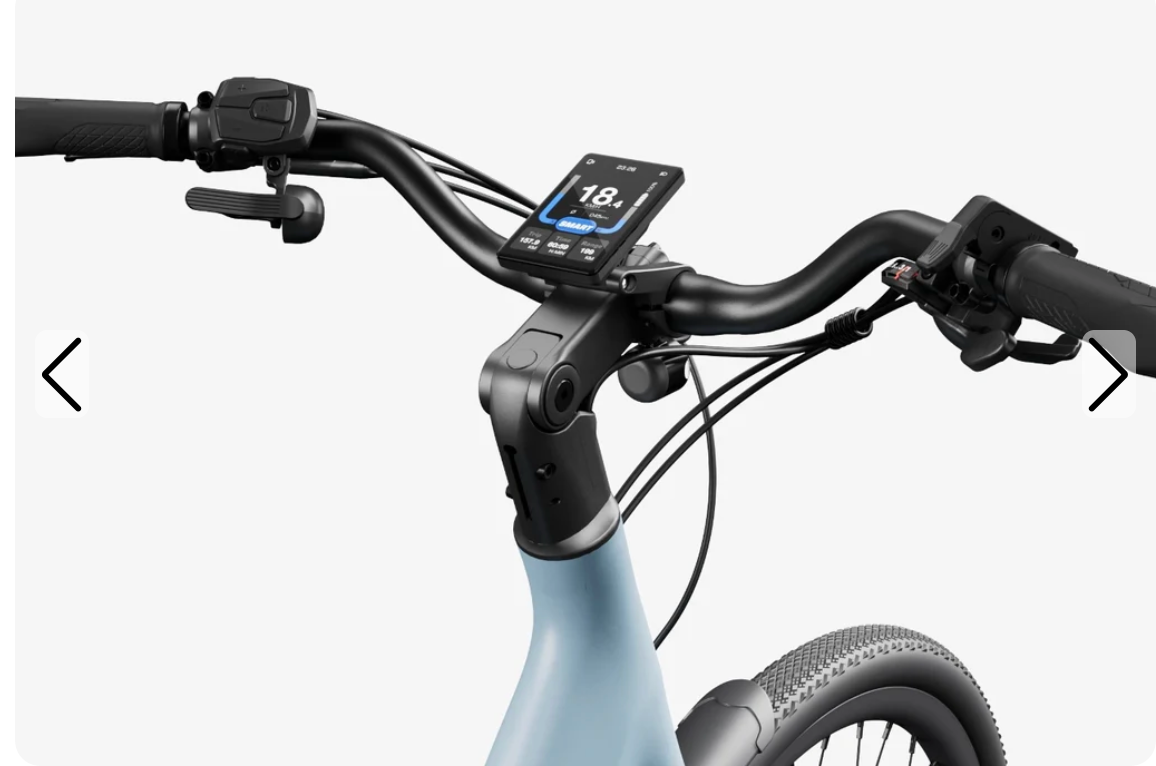

Display

3.5'' Color LCD display

Sensors

Torque sensor

Lights

Front: External light, 30 Lux

Rear: External rear light (Not ARES lights)

Chainrings

44T

Crankset

Aluminum alloy, 170mm

Cassette

11-40T, 8 Speed

Chain

Shimano 8 speed

Rear Derailleur

Shimano 8 speed

Shift Lever

8 Speed Trigger

Pedals

9/16" Alloy Platform

Grips

Durable ergonomic Grips, lockable

Seat Post

Aluminum Alloy, φ31.6mm, 300mm
