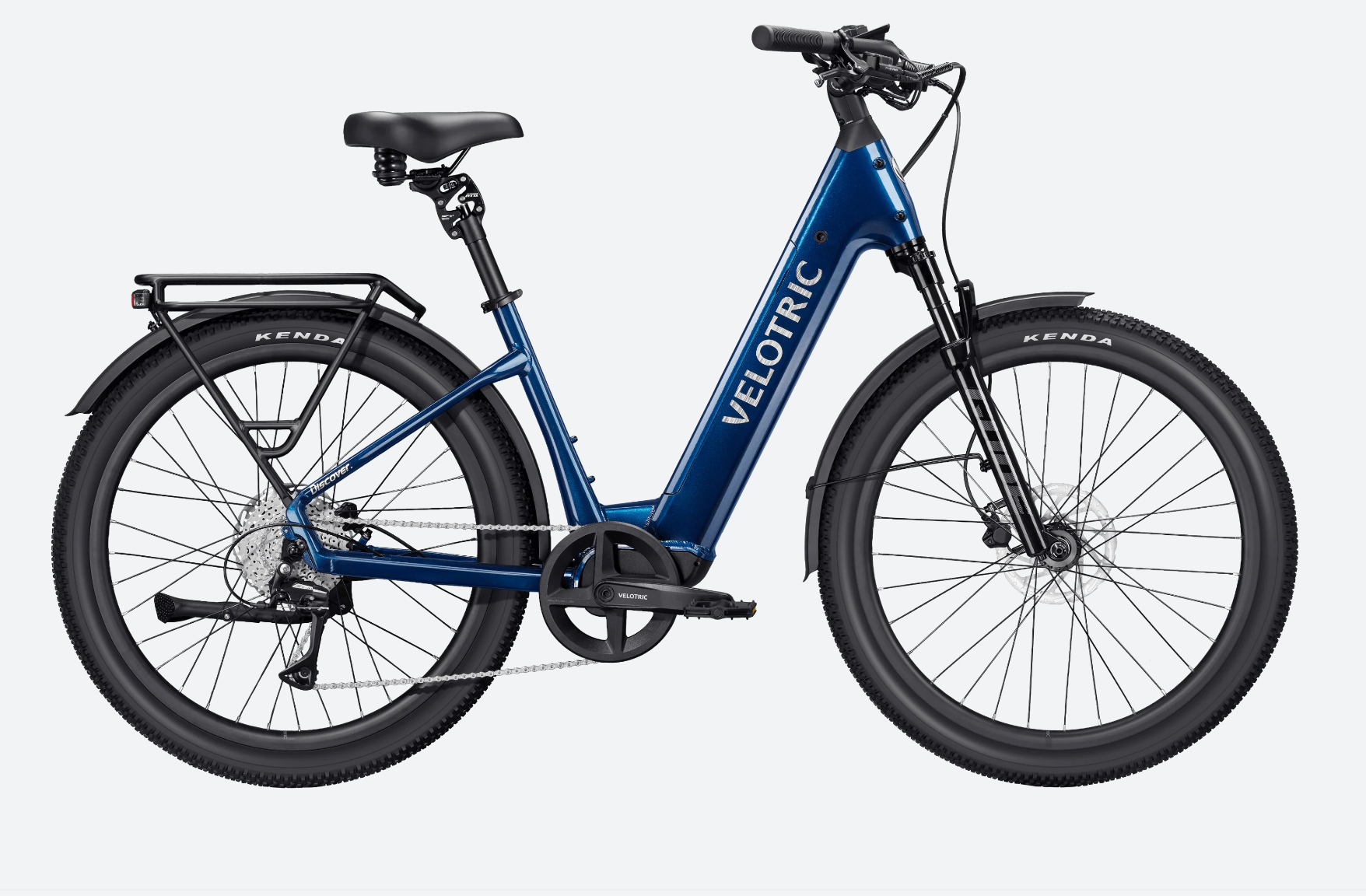

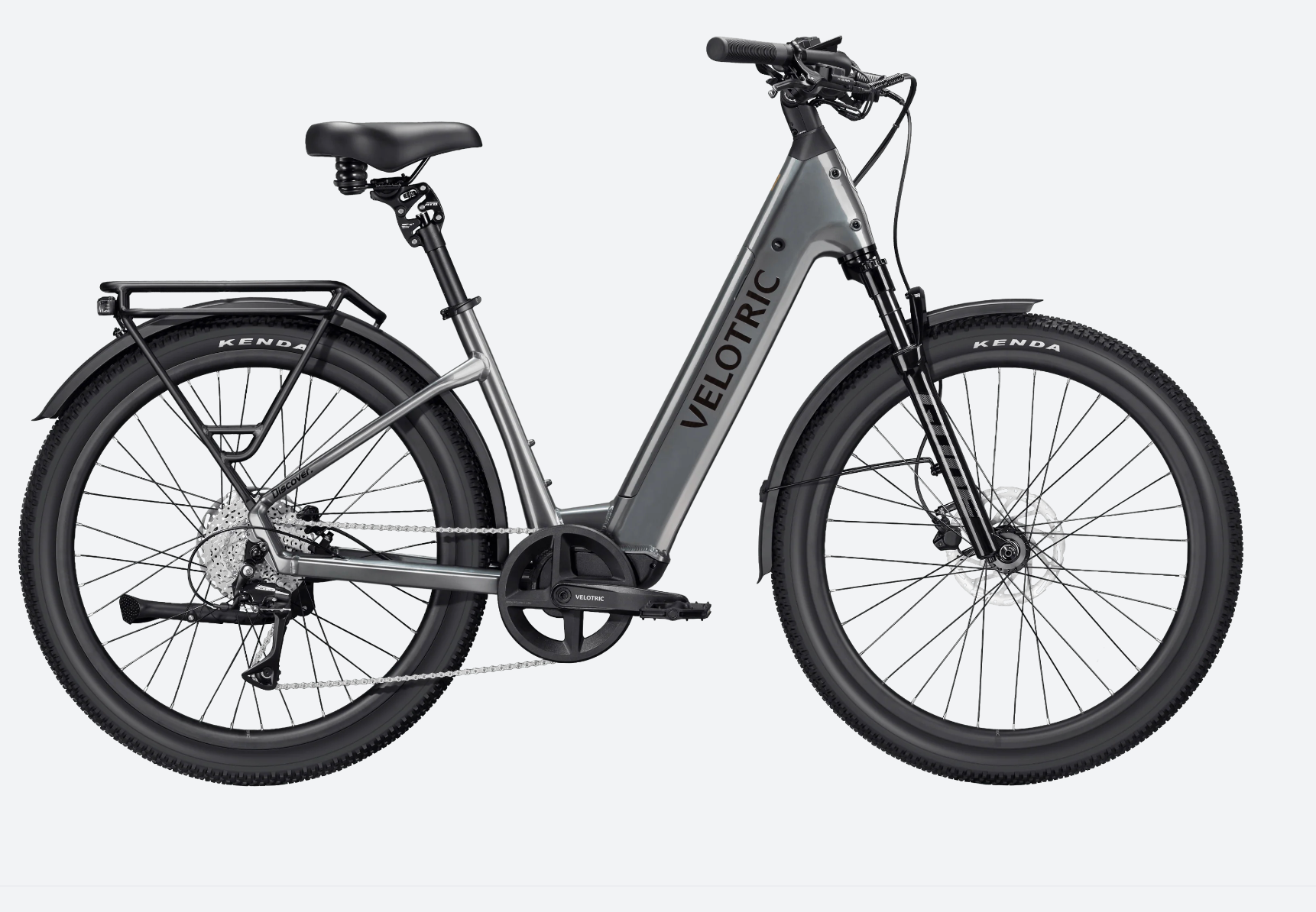

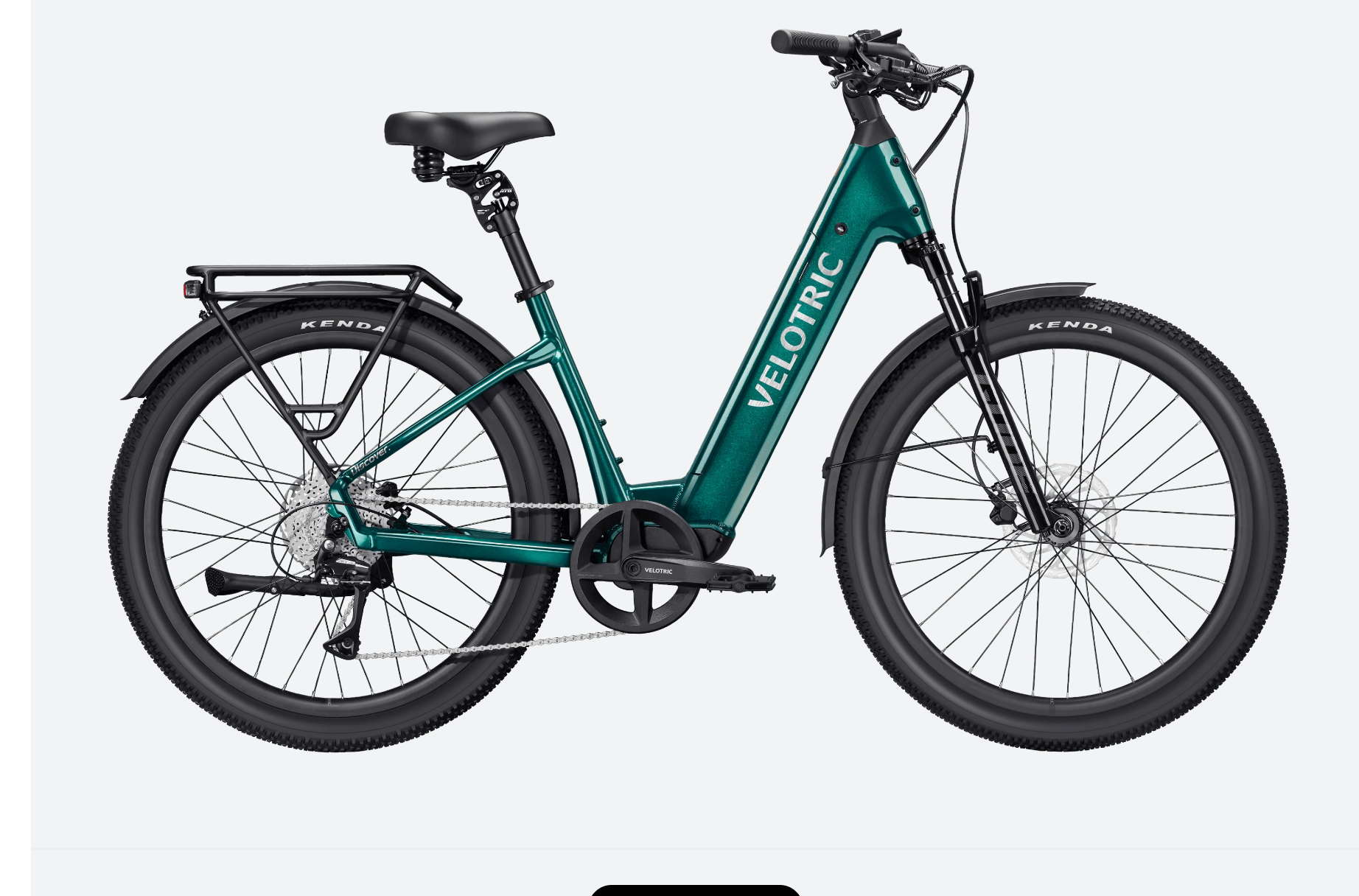

Velotric Discover 3 Electric Bike
Bike Size
Regular/Large
User Height Range
Regular: 4'11"" ~ 5'9" (5'2" - 5'11" with Suspension Seatpost)
Large: 5'6" ~ 6'4" (5'9" - 6'7" with Suspension Seatpost)
Frame
Triple-Butted Aluminum Alloy
Fork
Air suspension 80mm travel with Lock-out, 32mm inner Tube
Motor
48V, 750W (1100W Peak), 75Nm
Battery
48V, 15.2ah, 730Wh, IPX7, Certificated by UL 2271
Cell
Samsung/LG 21700 cell, Certificated by UL 2580
Charger
48V, 3A Fast Charger
Sensor
Torque and Cadence Sensor
Display
3.5" Full color, high brightness, Bluetooth, adjustable angle, NFC
USB Port
USB Type-C phone charge
Security
Apple Find My™ and Android Find Hub, NF card unlock
Throttle
Trigger-control, removable
Pedal Assist
5 Modes / Ride tuning
Walk Mode
2.9 MPH / Walk and Hold
Front Light
500LM high-output integrated LED, adjustable angle
Rear Light
Braking indicator, turn signal, rear light steady/flash, integrated with rear rack
Water Resistant
IPX7 for Battery, IPX6 for whole bike
APP
App OTA
Max Speed (Default）
20 MPH
Max Speed Adjustable Range
12~28 MPH
Class
1/2/3
Throttle Range
65 Miles
Pedal Assist Range
80 Miles
Chainrings
46T, narrow wide chainring
Crankset
Aluminum Alloy, 170mm
Freewheel
8-speed, 11-40T
Rear Derailleur
SHIMANO 8-speed
Shift Lever
SHIMANO 8-speed

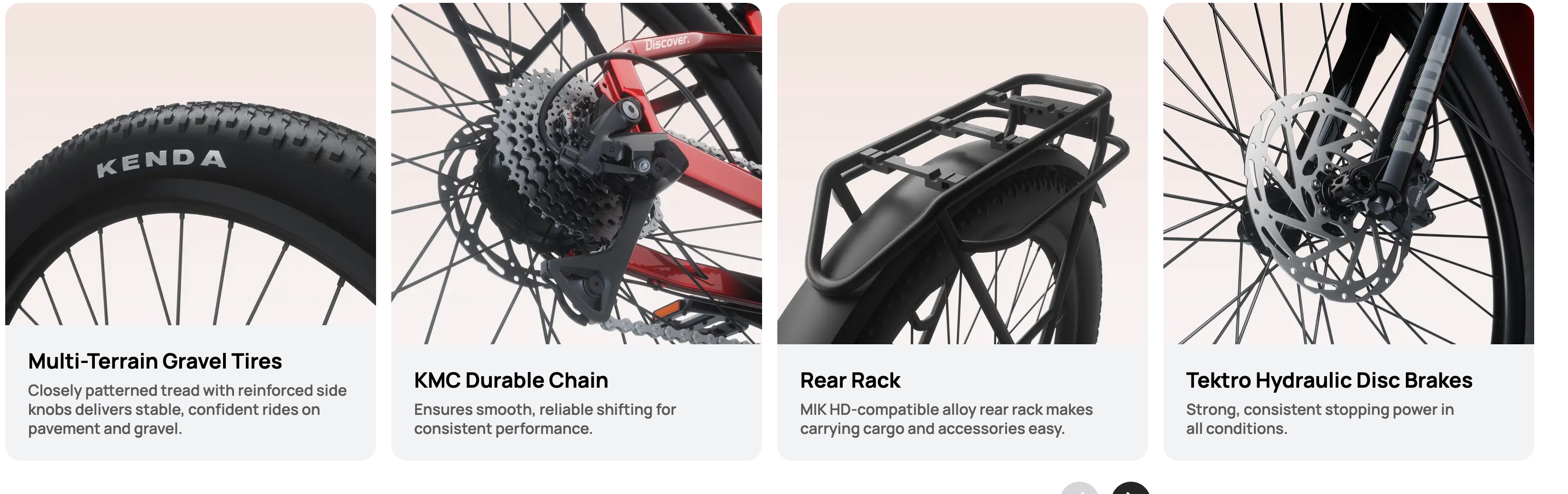

Chain
KMC 8-speed
Brake
Tektro Hydraulic Disc Brake
Rotors
180mm front and rear
Brake Levers
Aluminum Alloy, with power cutoff
Rims
Double-wall Aluminum Alloy
Front Hub
NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire
Kenda 27.5x2.4" eBike puncture resistant tires
Handlebar
Aluminum Alloy, Φ31.8mm, 680mm (R)/700mm (L)
Grips
Durable ergonomic grips, lockable
Stem
Adjustable, Aluminum Alloy, φ31.8mm, 90mm

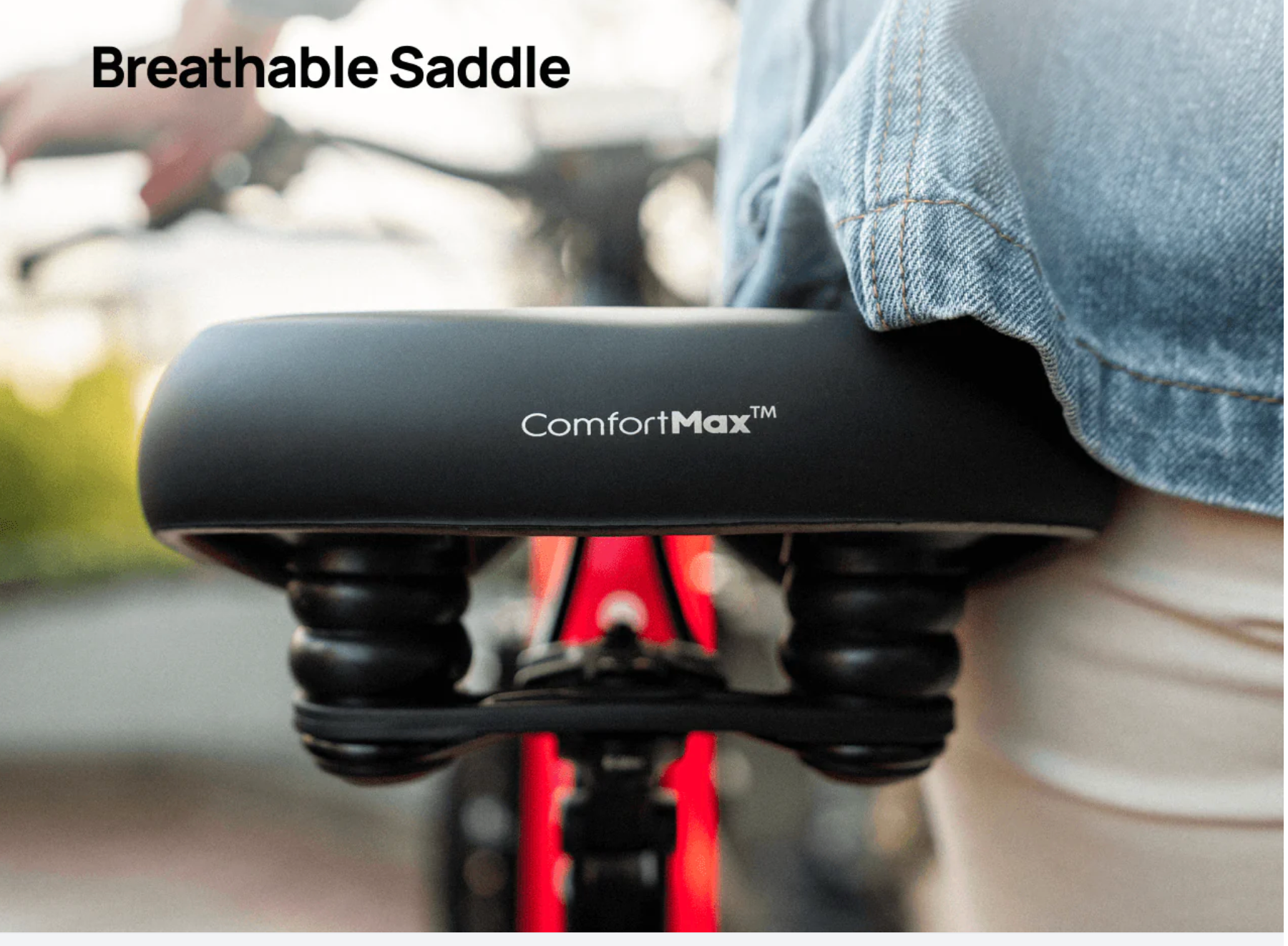

Saddle
VELOTRIC Dual-Layer breathable Ffoam
Seatpost
Aluminum Alloy, φ30.9mm, Suspension
Clamp
Aluminum Alloy, quick release
Fenders
Aluminum Alloy, front and rear full coverage
Rear Rack
Aluminum Alloy, MIK HD system
Pedals
Plastic
Kickstand
Aluminum Alloy, included, rear mount
Bike Weight
63lbs
Rear Rack Load Capacity
61lbs
Max Bike Load Capacity
440lbs
UL Certification
UL 2849
ISO Standard
ISO 4210
Warranty: 2 Years
