Kuat Pivot XD Heavy Duty 350lb Swing Away Rack

The Pivot XD is our heavy-duty upgrade to the popular Pivot V2, featuring a robust 350 lb load capacity and enhanced components throughout. This premium swing away hitch offers 90 and 120-degree passenger side swing capabilities with a forged latch design and integrated Flatlock™ Hitch Cam system. Built with steel construction and backed by our No Worries Limited Warranty.

• 350 lbs load capacity

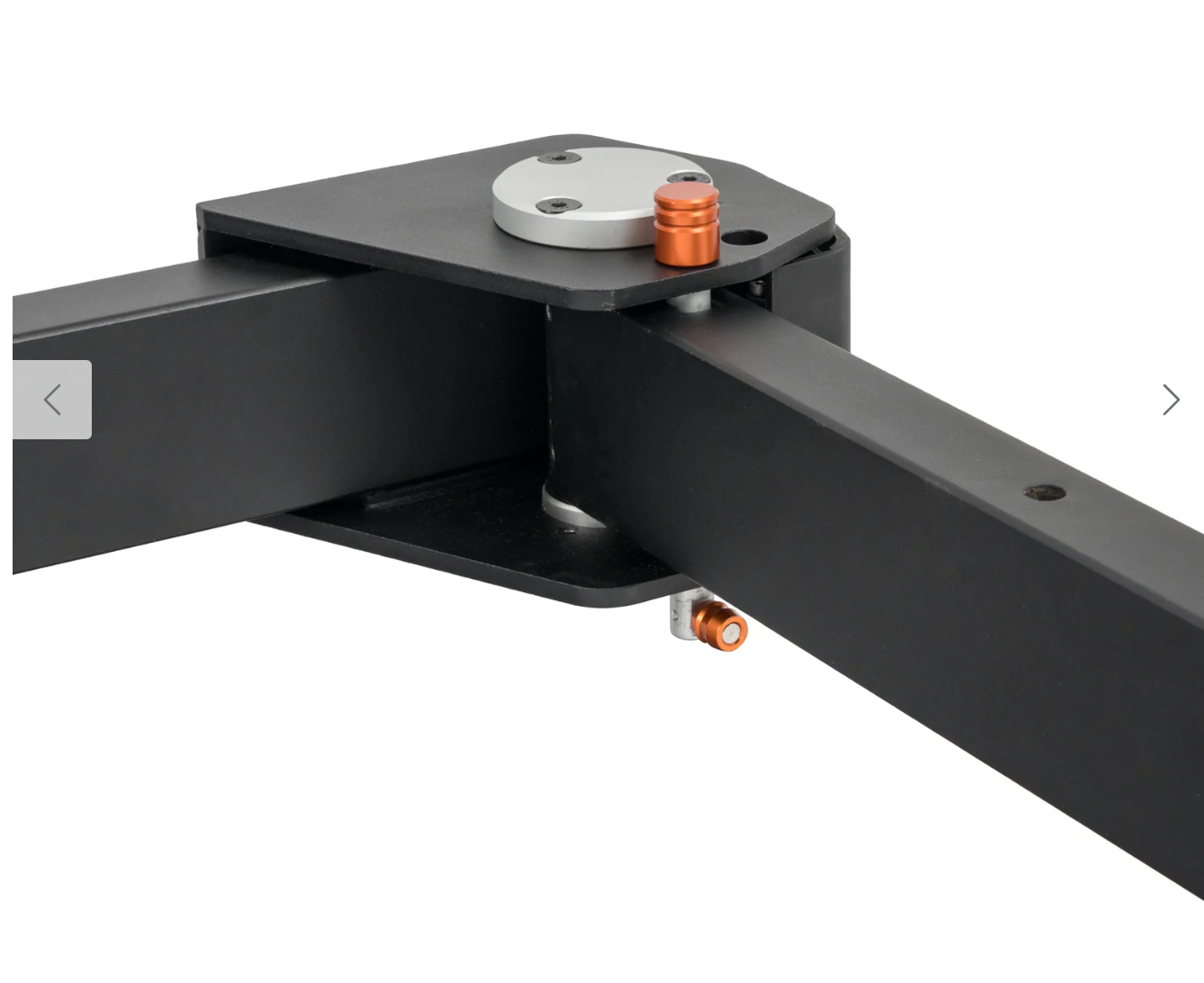

• A pressed ball bearing pivot creates a smooth, open-ended experience
• 90 and 120-degree swing-away capabilities
• Forged latch design for exceptional rigidity
• Passenger side swing away
• Included Locking Hitch Pin
• Patented Flatlock™ Hitch Cam
• Steel Construction
• Sandy Black Powder Coat
• Built to accept our Accessory Hoop with Molle and Spare Tire Wheel Adapter (Coming Soon!)
• No Worries Limited Warranty

COMPATIBILITY

Minimum Class III hitch required. Keep in mind that carrying weight further from the hitch will increase the weight tension on your vehicle’s hitch.

The Pivot XD is not rated for use on RVs, trailers, motorhomes or towing.

CAPACITY

350 lbs. Maximum weight capacity

WEIGHT

68 lbs.

SHIPPING WEIGHT
74 lbs.

SHIPPING DIMENSIONS
42" x 24" x 9"
