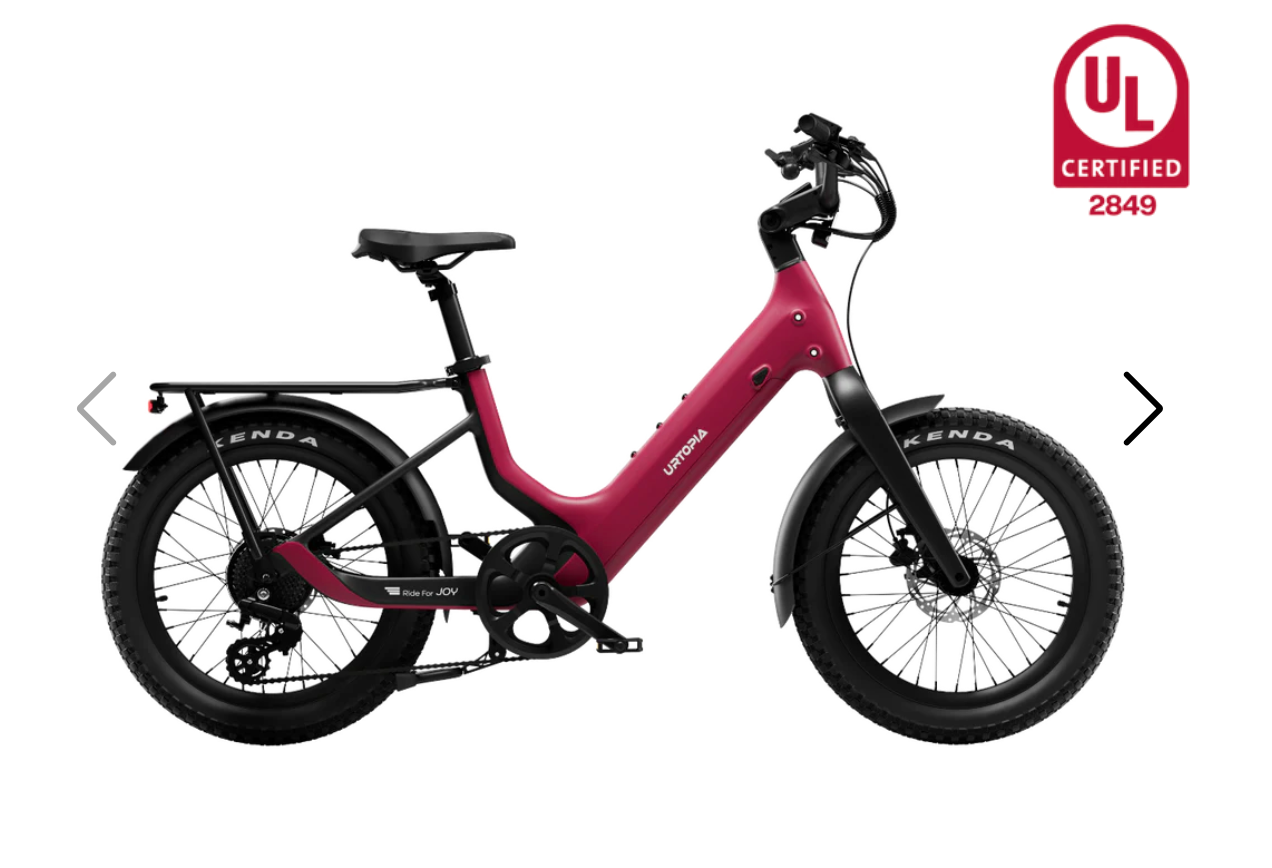

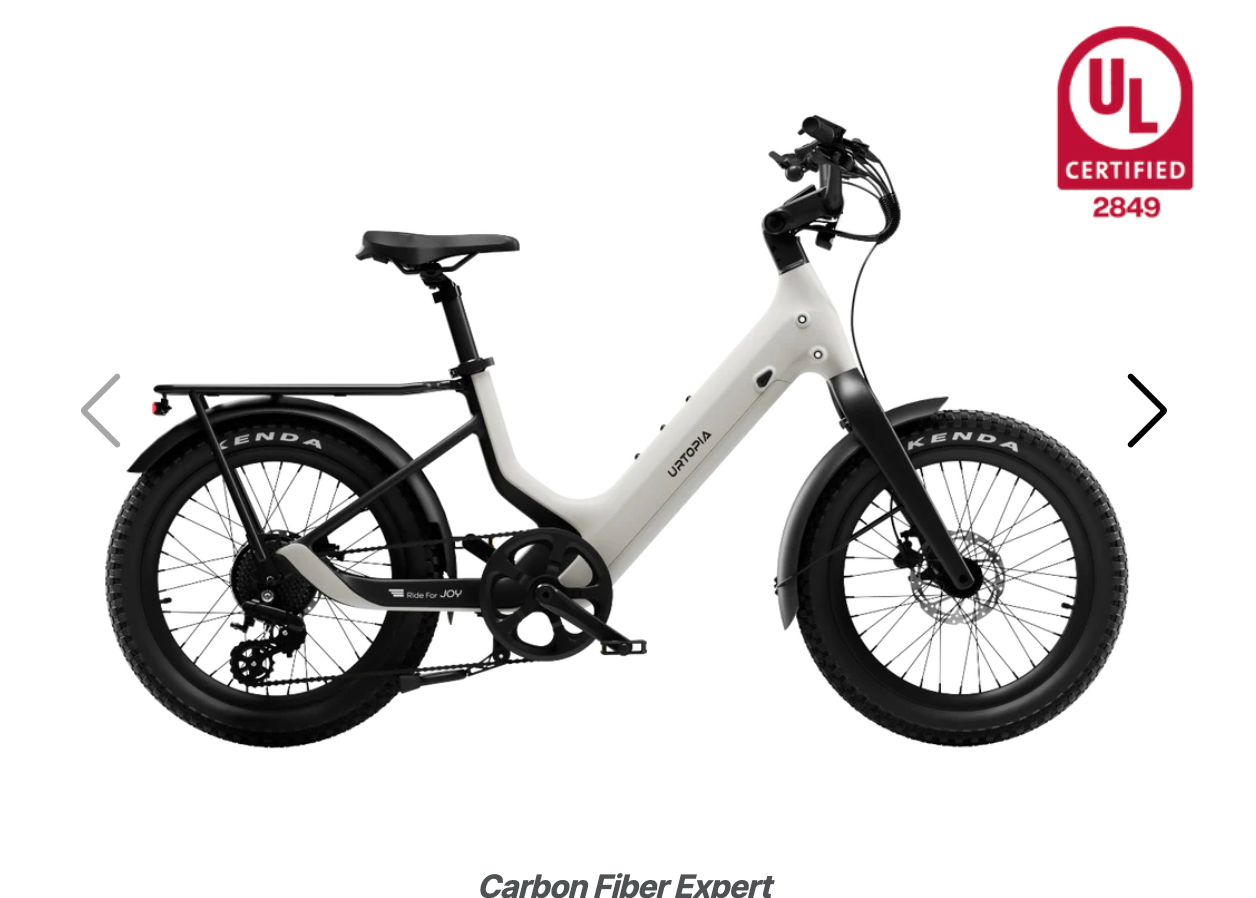

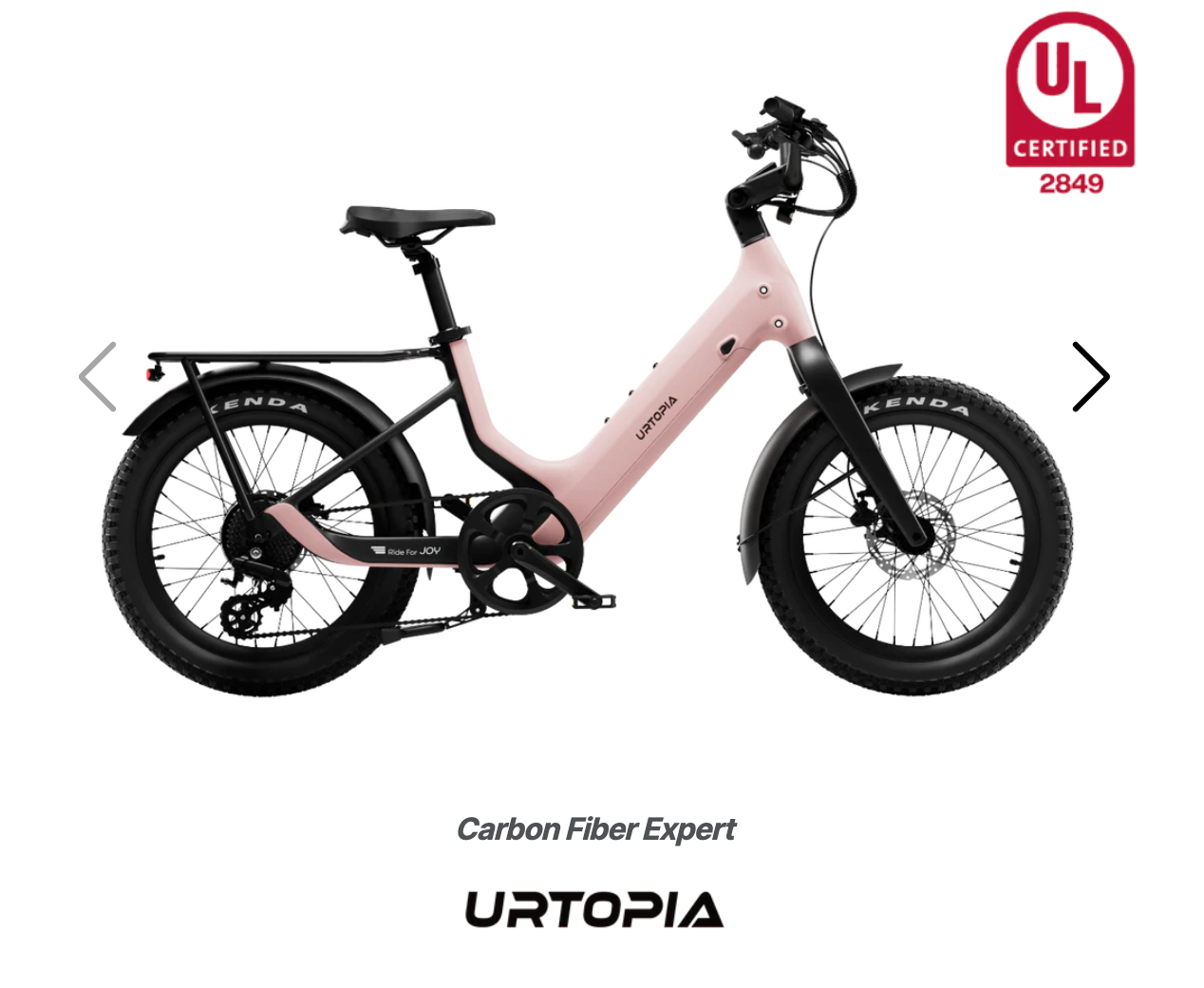

Urtopia Carbon Joy Ultra Torque Electric Bike

Model

Carbon Joy Ultra E-bike

Net Weight

42 lbs w/o acc.

Material

Carbon fiber (frame, fork)

Range

Up to 70 miles

*The 70-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.

Top Speed

20mph by default, 25mph upon unlock

Total Weight Limit

330 lbs

Rider Height

4’11’’ - 6’3’’

Brakes

TEKTRO hydraulic disc brake with power cut-off sensor

Wheels

Kenda 20’’x3.0’’, Thru-Axle

Class

Class 2

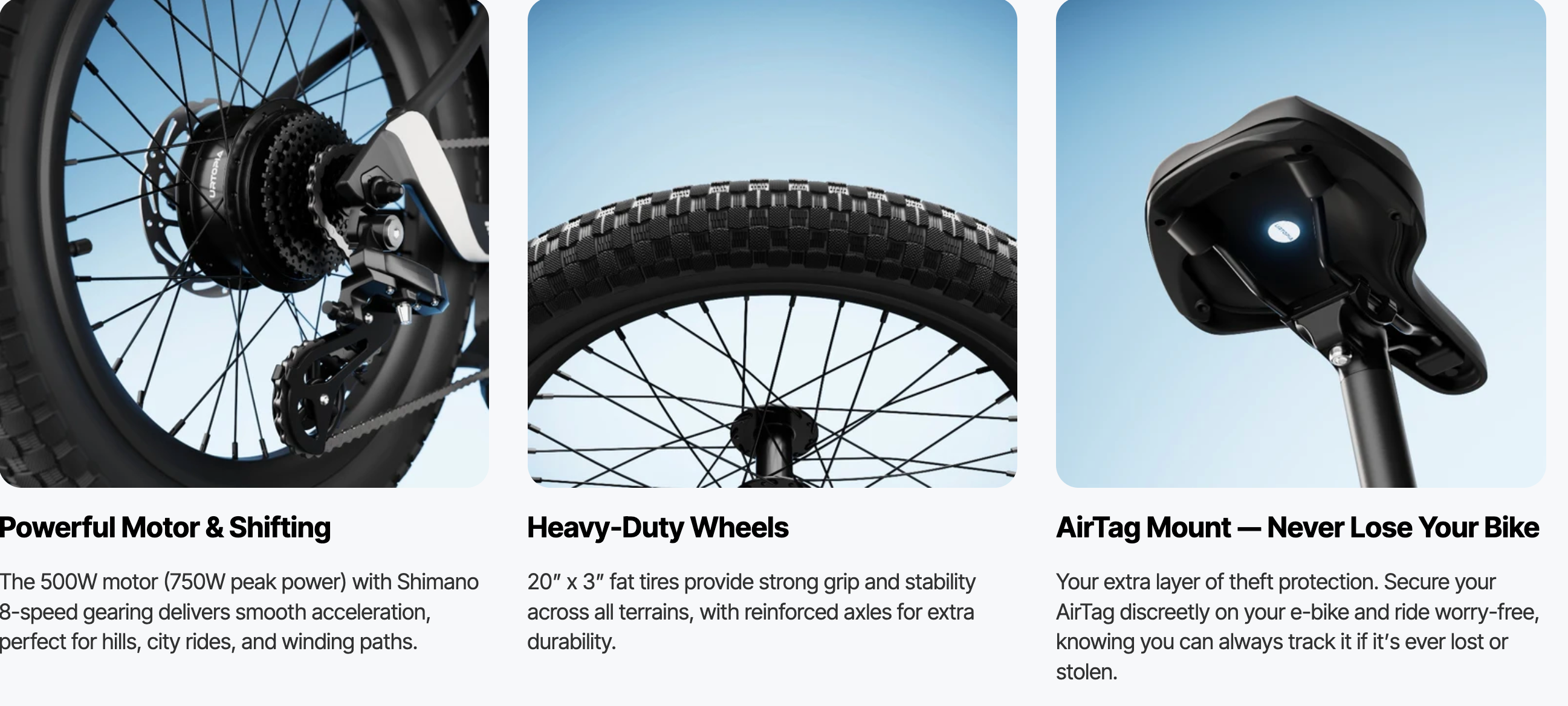

Motor

500W (Peak Power 750W) rear hub, 60Nm

Throttle

Yes (up to 20mph)

Battery

529.2Wh, Samsung Li-ion, certified to UL-2271

Pedal Assist

4 levels (Eco, Tour, Boost, Turbo)

Charger

3.5hrs fast charger

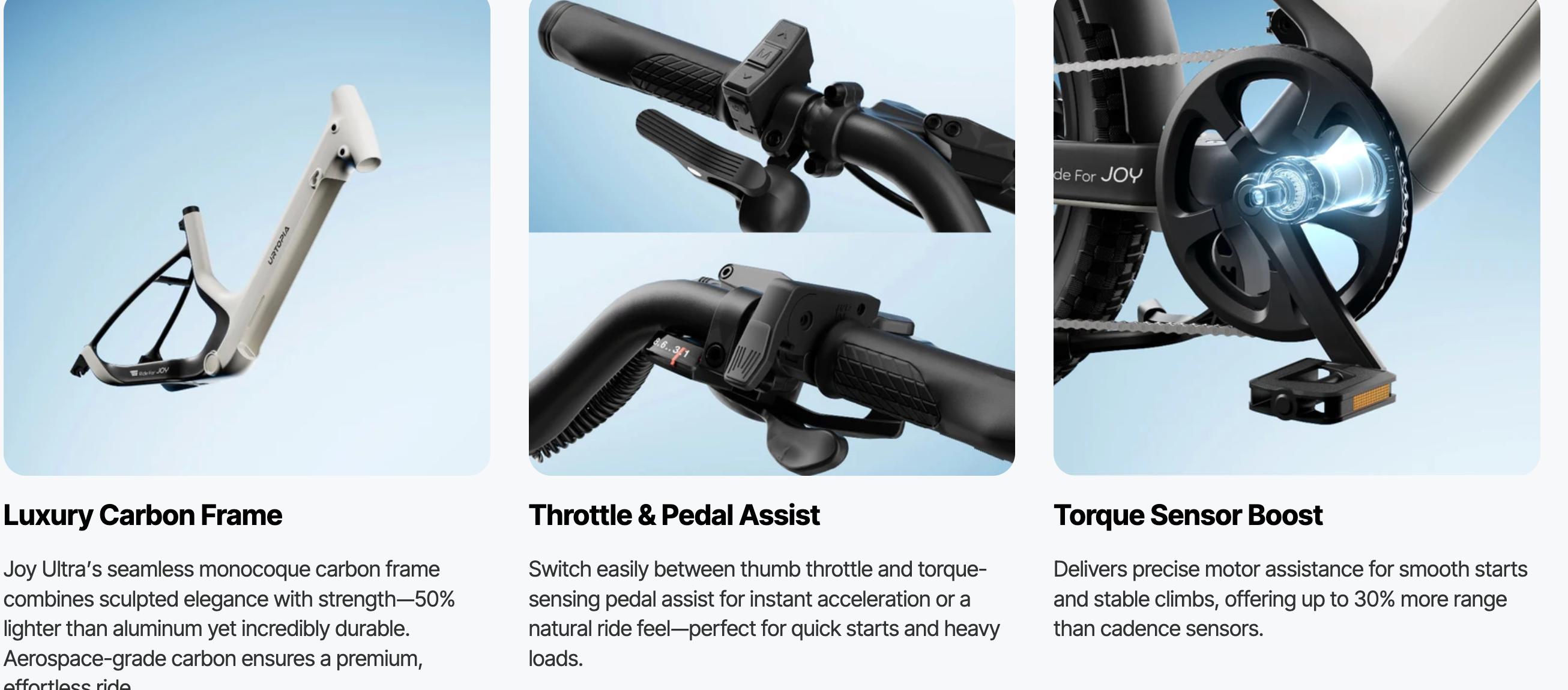

Sensors

Torque sensor

Lights

Front: External light, 30 Lux

Rear: External tail light (Not ARES lights)

Water Resistance

IP65

Chainrings

50T

Crankset

Aluminum alloy, 152mm

Cassette

12-32T, 8 Speed

Chain

Shimano 8 speed

Rear Derailleur

Shimano 8 speed

Shift Lever

8 Speed Trigger

Pedals

PP, 103 x 84 x 24mm

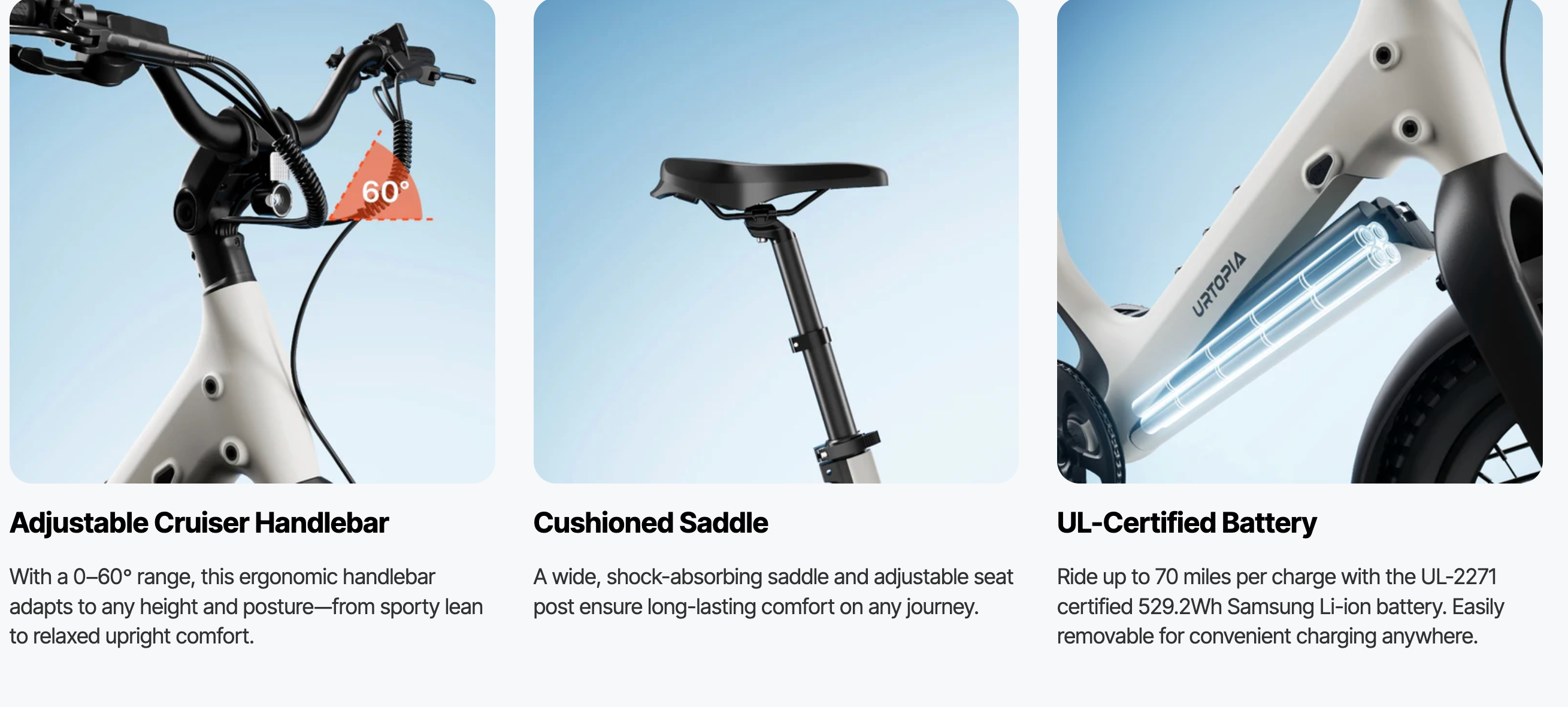

Handlebar

Aluminum, extender 0-60° adjustable

Grips

Durable ergonomic Grips, lockable

Comfort Saddle

273x160x75mm

Seat Post

Aluminum Alloy 2-stage adjustable design

Diameter:  30.9mm(inner)  34.9mm(outer)

Adjustment range: 100mm(inner) 120mm(outer)
