Cikada City Step Thru Hybrid Electric Bike
Motor
Bafang H400B rear-hub, 500W / 45Nm torque
Sensor
Bafang speed sensor
Battery
480Wh (48V / 10Ah) LG 21700 cells, 5–6h charge, removable with lock
Controller
Bafang CR C101.C 48V / 500W

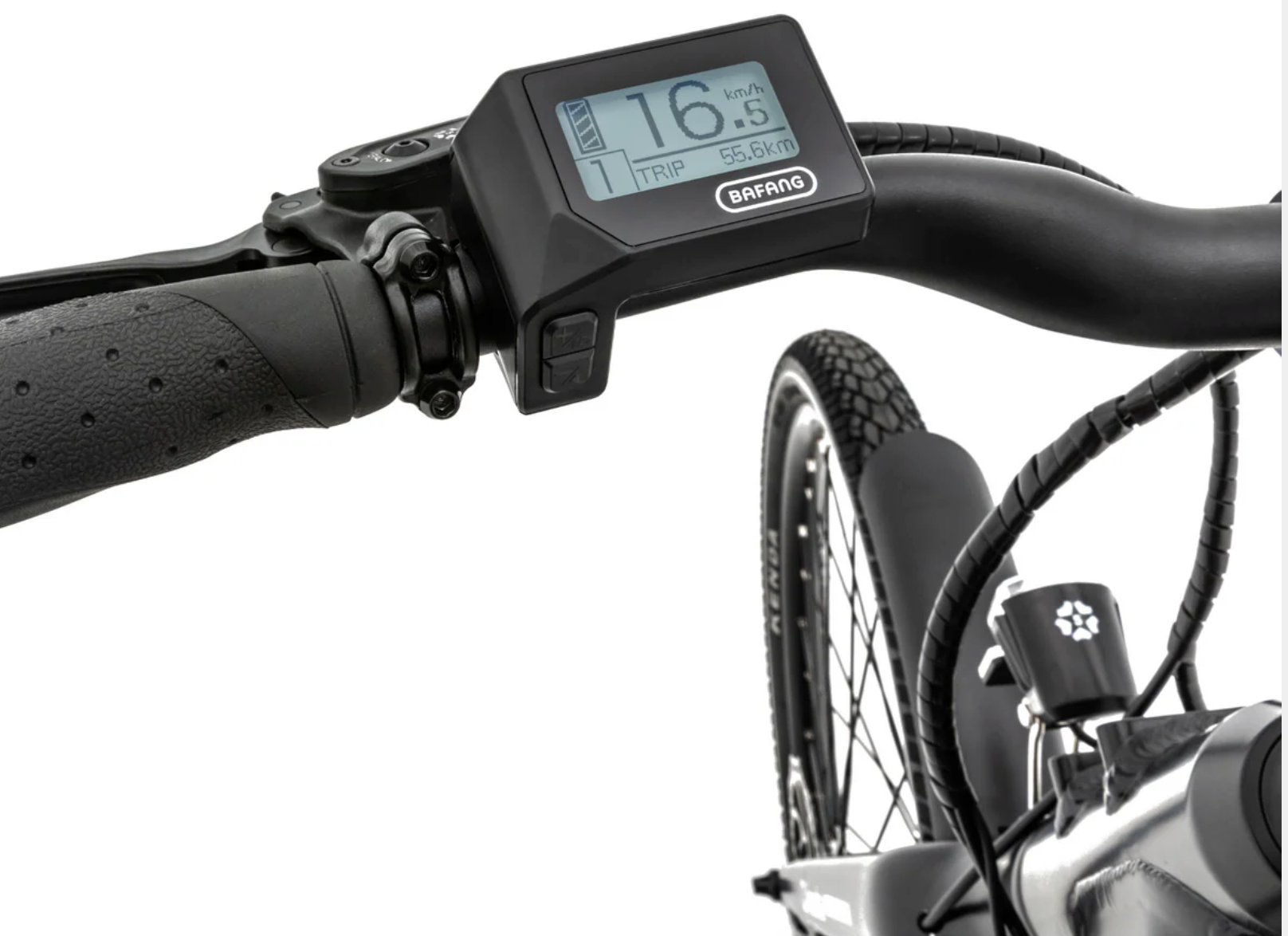

Display
Bafang DP C221.CAN, Bluetooth, 5 assist modes, km/mi switch, walk assist, battery & speed display, lighting & error view
Frame
27.5” 6061 aluminum
Fork
Alloy rigid fork, OLD: 10mm x 100mm
Tires
Kenda 27.5×2.00, anti-puncture, reflector strip
Rims
27.5", alloy double wall, 36H
Inner Tubes
Kenda A/V
Hub
Front alloy hub, OLD 10×100mm (3.9"), 36H, QR
Compatible App
Cikada App (Riding display / Ride summary / Ride history)
Displayed Data
Real-time speed, time, battery capacity
Ride Summary
Date & time, route, total distance & time, avg/max speed, avg/max HR, calories burned, CO₂ reduced, speed & HR graphs
Ride History
Total distance, total time, CO₂ reduced, total rides
Crankset
Prowheel 44T × 170mm (6.7"), with chain cover

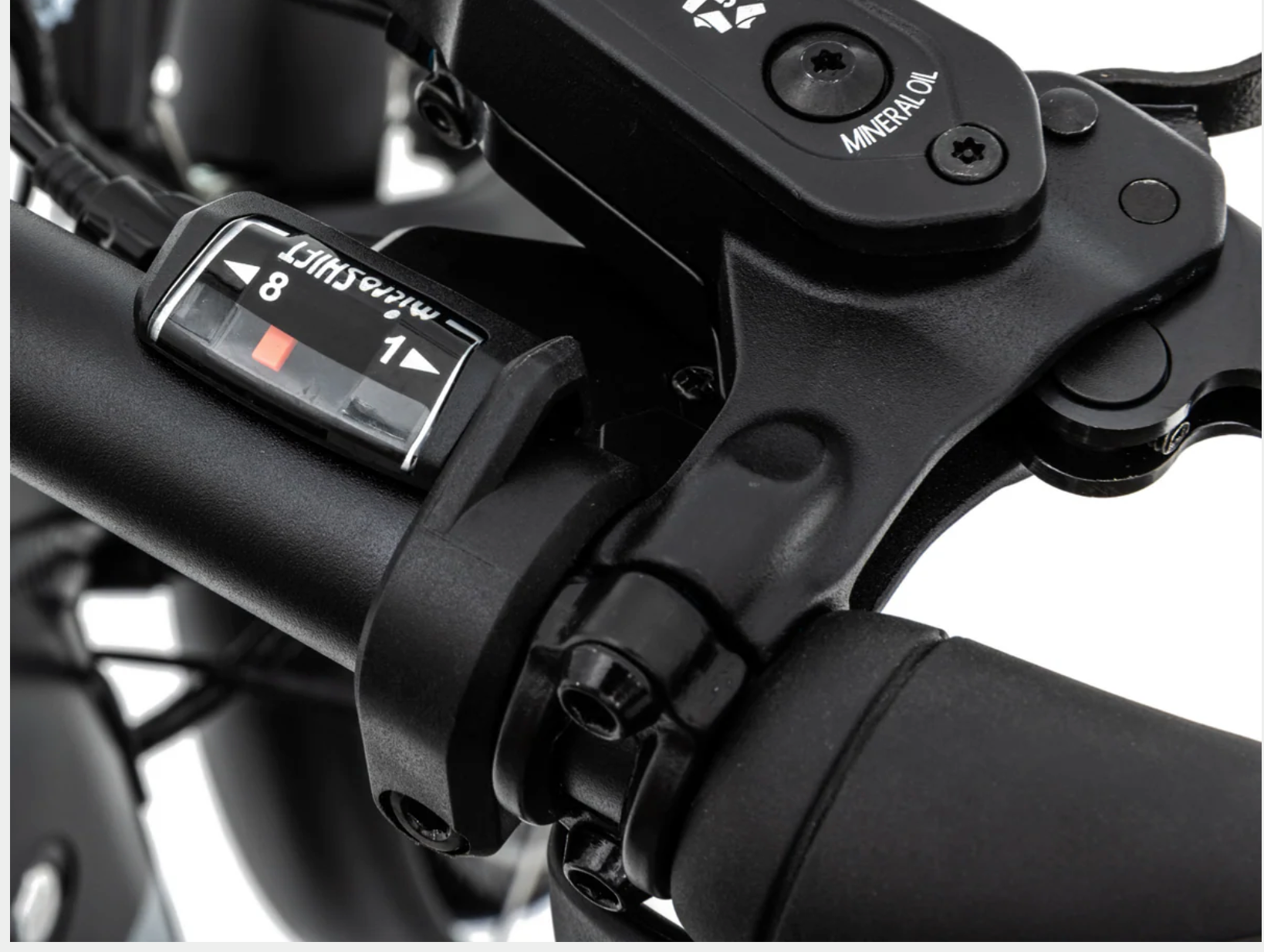

Shift Lever
Microshift TS-39 R, thumb-tap
Rear Derailleur
Microshift RD-M26S
Cassette
Microshift 8-speed, 11–34T
Chain
KMC Z8.3
Pedals
Alloy body, 9/16" steel axle, 112×108mm (4.4"×4.3"), with CPSC reflector
Brakes
Hydraulic disc brakes, 160mm (6.3") rotors, power cut-off
Handlebar
Zoom aluminum rise bar, 680mm (27") width, Ø31.8mm (1.25")
Stem
Zoom adjustable aluminum, 105mm (4") extension, Ø31.8mm (1.25")
Saddle
Ergonomic leather saddle, steel rail
Seatpost
Zoom aluminum, Ø31mm × 300mm (L) / 250mm (M)
Grips
Velo anti-slip rubber/gel
Bottom Bracket
BB73
Product Weight
57.32 lbs (26 kg)
Maximum User Weight
309 lbs (140 kg)
M: 19” (48cm)
for riders between 5’2”-5’9” (157cm - 175cm) in height
L: 21” (53cm)
for riders between 5’5”-6’4” (165cm - 193cm) in height
Warranty
Frame: 5 years (after warranty activation)
Suspension Fork: 2 years
Rigid Fork: 2 years
Electronics (Excluding Battery): 2 years
Battery: Up to 600 charges or 2 years, whichever comes first
Accessories: 1 year
All Other Non-Wearing Components: 2 years
