Cikada Touring Step Thru Hybrid Electric Bike
Motor
BaFang M410 mid-drive, 350W / 80Nm
Sensor
BaFang speed & integrated torque sensor
Battery
720Wh (48V / 15Ah) LG 21700 cells, 7.5–8h charge, removable with lock
Controller
Integrated in motor
Display
BaFang DP C221.CAN, Bluetooth, 5 assist modes, km/mi switch, walk assist, battery, lighting, speed/time, motor output, energy, info & error view
Frame
27.5" 6061 aluminium

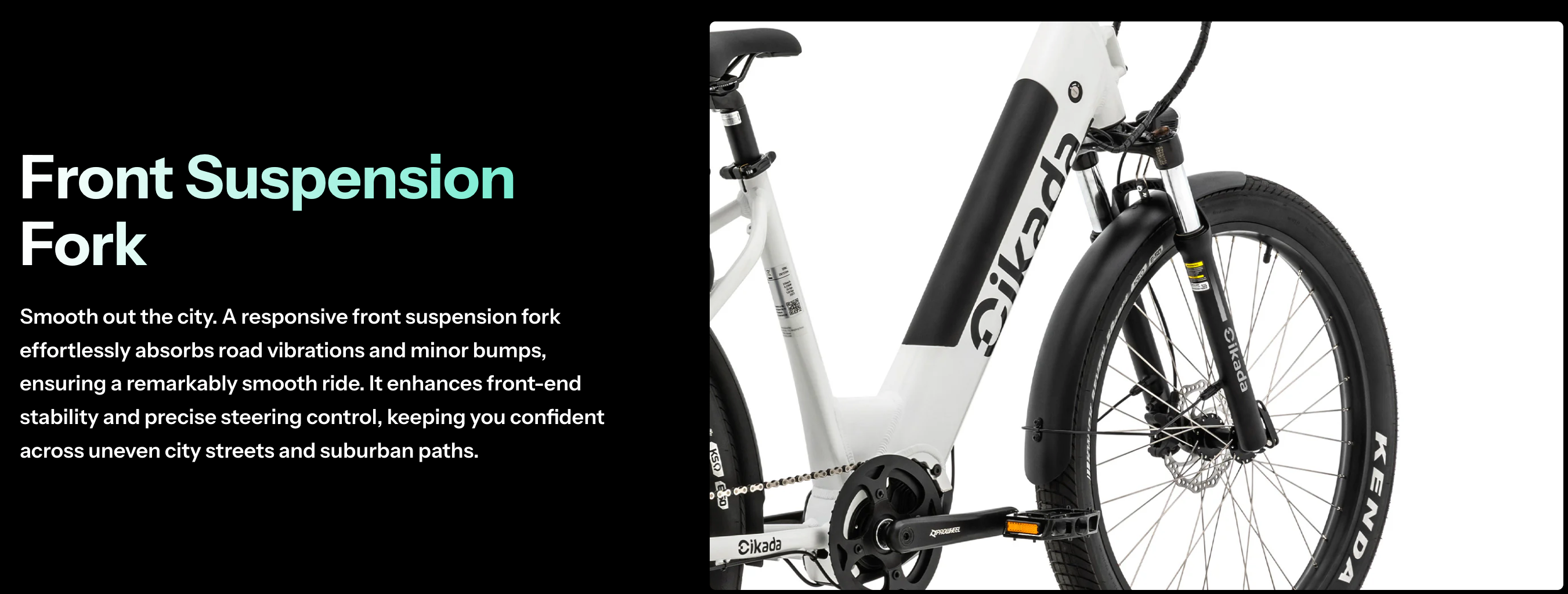

Fork
Zoom suspension fork, OLD 15×110mm (0.6"×4.3"), travel 60mm (2.4")

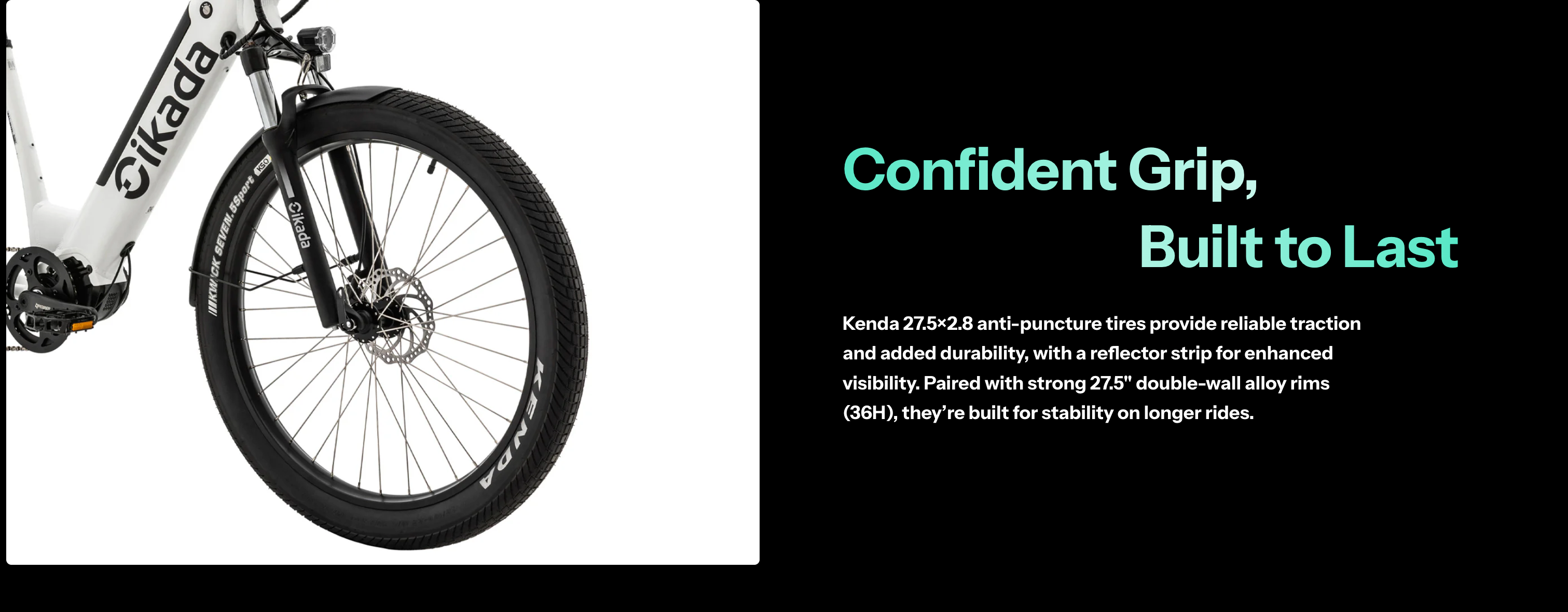

Tires
Kenda 27.5×2.8, anti-puncture, reflector strip
Rims
27.5", alloy double wall, 36H
Inner Tubes
Kenda A/V
Hub
Alloy front hub OLD 15x110mm (4.3"); rear alloy hub OLD 135mm (5.3")
Compatible App
Cikada App (Riding display / Ride summary / Ride history)
Displayed Data
Real-time speed, time, battery capacity
Ride Summary
Date & time, route, total distance & time, avg/max speed, avg/max HR, calories burned, CO₂ reduced, speed & HR graphs
Ride History
Total distance, total time, CO₂ reduced, total rides
Crankset
Prowheel 44T × 170mm (6.7"), with chain cover
Shift Lever
Microshift TS-39 R, thumb-tap
Rear Derailleur
Microshift RD-M26S
Cassette
Microshift 8-speed, 11–34T
Chain
KMC e8S
Pedals
Alloy body, 9/16" steel axle, 112×108mm (4.4"×4.3"), with CPSC reflector
Brakes
Hydraulic disc brakes, 160mm (6.3") rotors, power cut-off
Handlebar
Zoom aluminium rise bar, 680mm (27") width, Ø31.8mm (1.25")
Stem
Zoom adjustable aluminium, 105mm (4") extension, Ø31.8mm (1.25")
Saddle
Ergonomic leather saddle, steel rail
Seatpost
Zoom aluminium, Ø30.9mm × 300mm (L) / 250mm (M)
Grips
Velo anti-slip rubber/gel
Product Weight
59.52 lbs (27 kg)
Maximum User Weight
330.69 lbs (150 kg)
Frame: 5 years (after warranty activation)
Suspension Fork: 2 years
Rigid Fork: 2 years
Electronics (Excluding Battery): 2 years
Battery: Up to 600 charges or 2 years, whichever comes first
Accessories: 1 year
All Other Non-Wearing Components: 2 years
