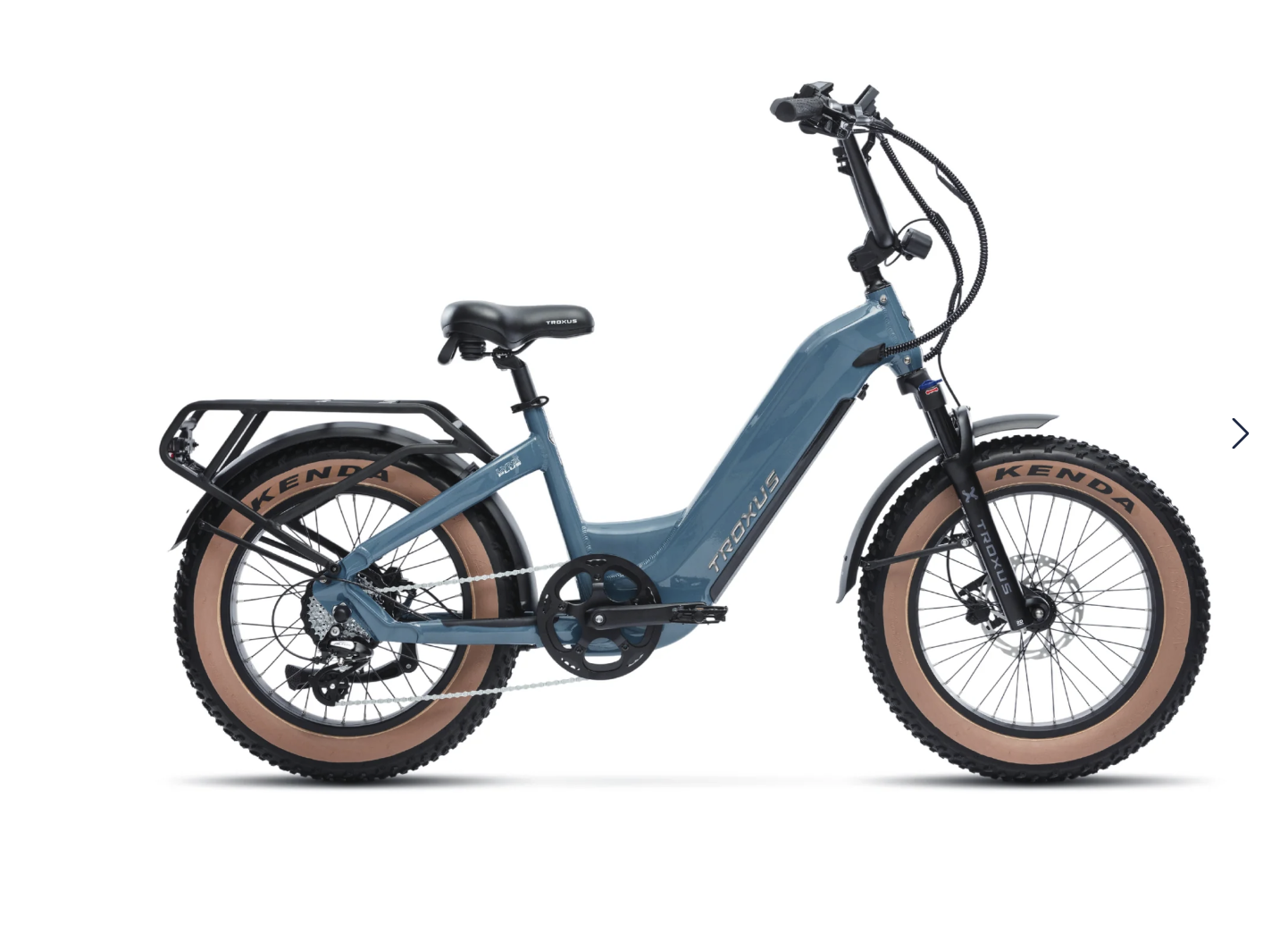

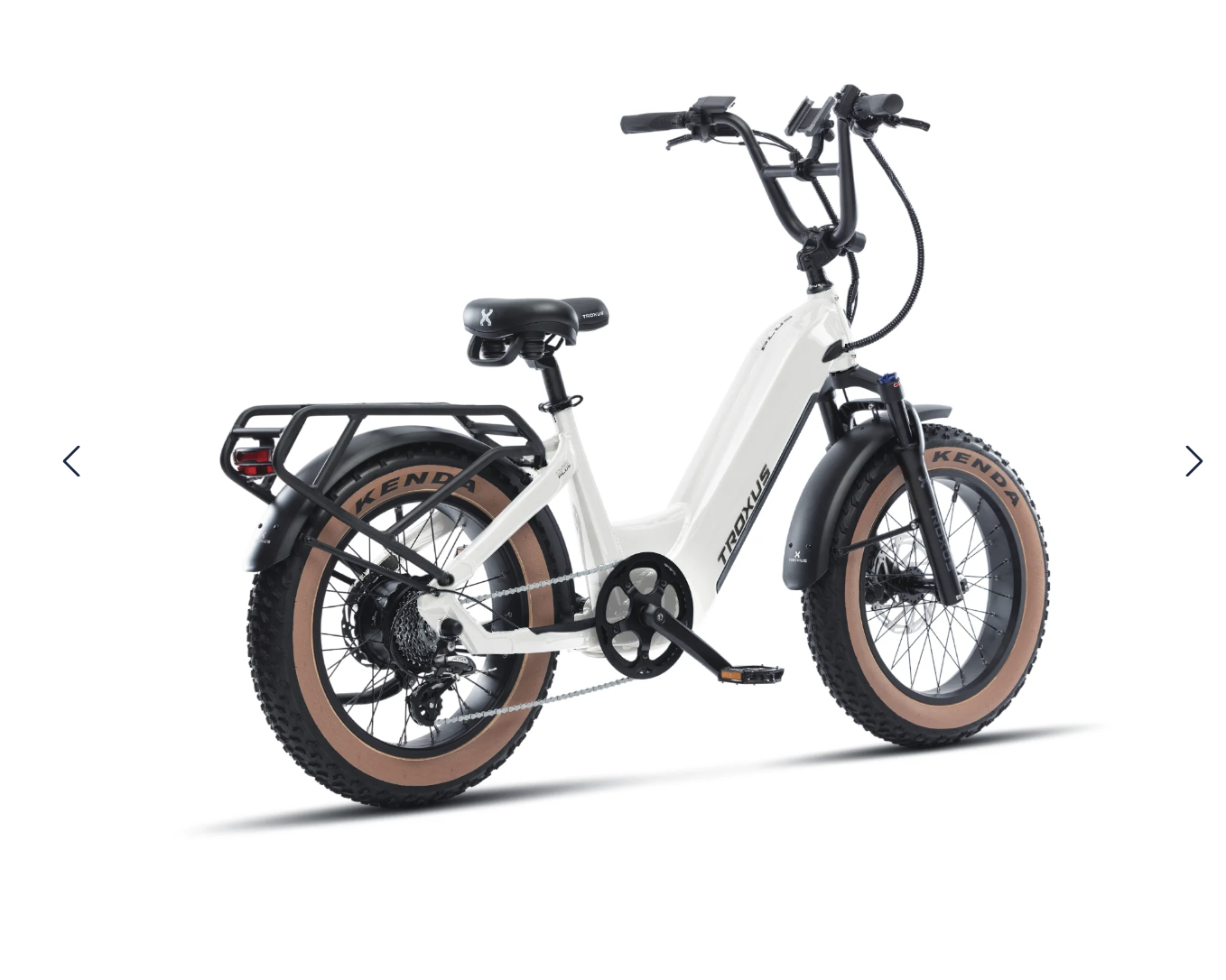

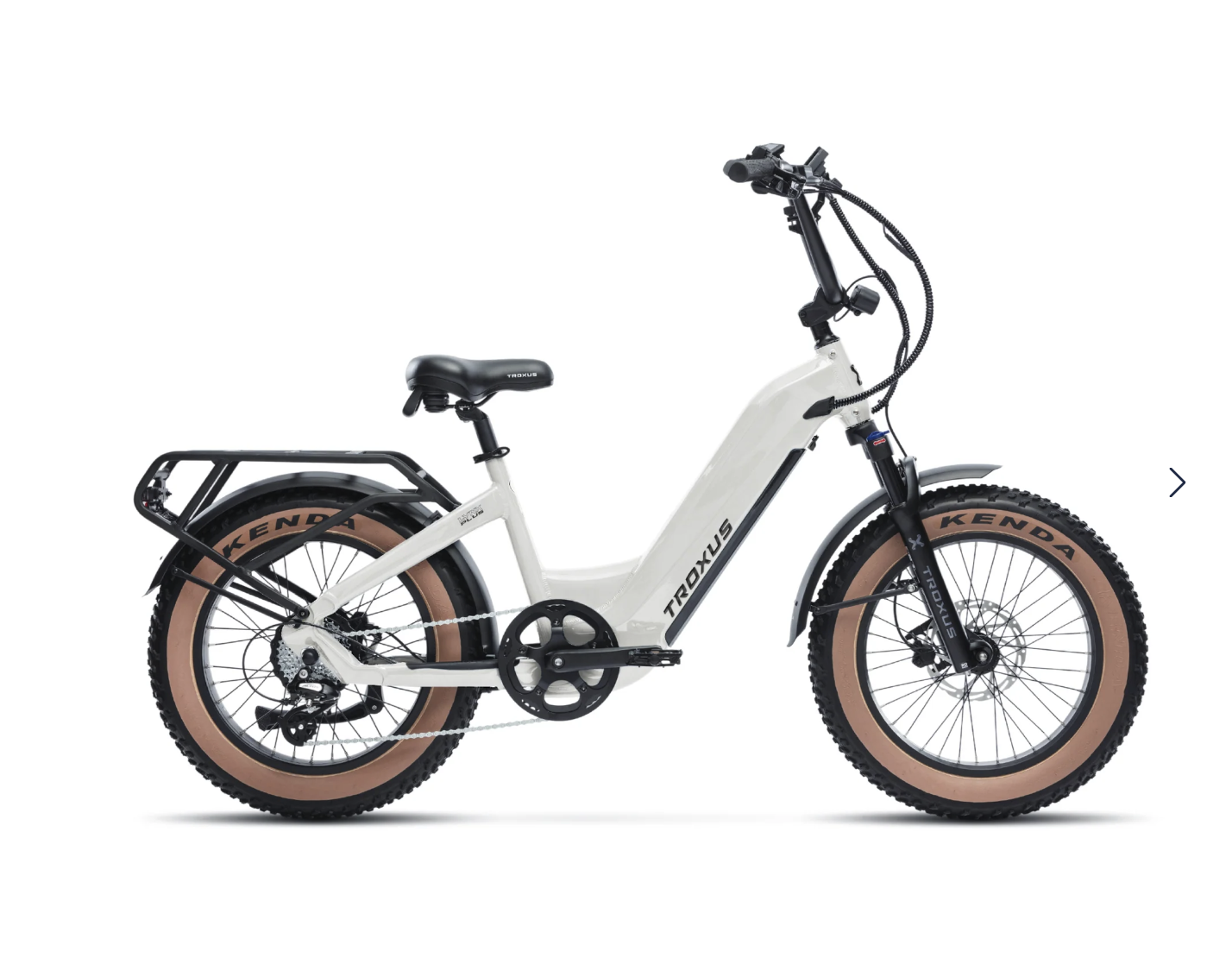

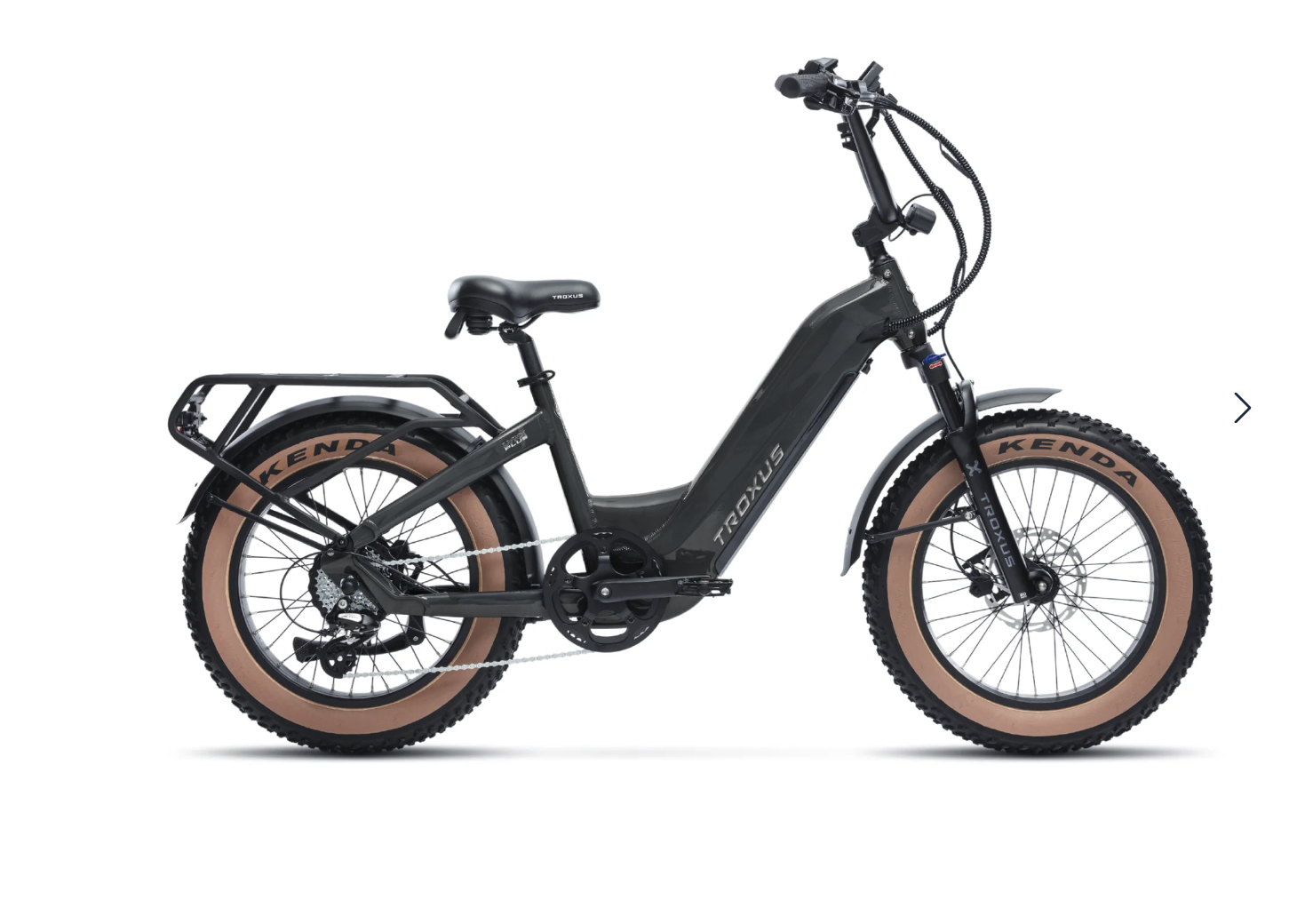

Troxus Lynx Plus  IQ Step Thru Fat Tire Electric Bike

The Lynx Plus iQ compact electric bike combines utility features with smart

Ride iQ connectivity for safer and more convenient daily riding. Its compact

frame, long-range battery, and high cargo capacity make it ideal for commuting,

errands, and everyday riding.

• Connectivity:
  Remote access with proximity unlock
• Security:
  Real-time GPS tracking and geofencing alerts
• Ride Intelligence:
  Smoother, customizable power delivery
• Energy Management:
  Smarter trip planning and reduced range anxiety
• Connected Features:
  4G connectivity, ride monitoring, security alerts, and real-time ride information

• Motor:
  Ananda 48V/750W Hub-Drive Motor, 86Nm Max. Torque
• Battery:
  UL-2271 Certified / Internal / Removable / Lithium Ion,
  48V/20Ah (960Wh) with Samsung® Cells
• Display:
  Color Display, Bluetooth, w/ Turn Light Signals,
  w/ Multi-Function Remote, w/ USB Charging
• Sensor:
  Switchable Torque and Cadence Sensor Modes
• Pedal Assist:
  0–5 Level Pedal Assist
• Charger:
  3A / 100–240V Input / 54.6V Output
• Lights:
  Front Light & Rear Light
• Controller:
  48V × 22A / 12V

• Frame:
  6061-T6 Aluminum Step-Thru Frame
• Fork:
  Front Suspension Fork, 80mm Travel
• Chain:
  KMC® 1/2″ × 3/32″
• Crankset:
  Aluminum, 48T, w/ Single Alloy Chainguard,
  Square Taper, 165mm
• Rear Derailleur:
  Shimano® RD-M310-L, Altus, 8-Speed
• Cassette:
  Shimano® 8-Speed, 12-32T
• Shifter:
  Shimano® 8-Speed
• Bottom Bracket:
  Square Taper Sealed Bearings, Torque & Cadence Sensors Included
• Tires:
  KENDA® KRUSADE Sport 20″ × 4.0″,
  w/ Anti-Puncture K-Shield
• Front Hub:
  Alloy, 36H, 110mm, 3/8″ Axle
• Rear Hub:
  Bafang® 48V 750W / 28 MPH, 86Nm
• Rims:
  Alloy Double Wall, 20″ × 4.0″ w/ Eyelets
• Spokes:
  Stainless 13G Front / 12G Rear
• Brakes:
  Tektro® Hydraulic, w/ Brake Sensors
• Rotors:
  180mm / 160mm
• Saddle:
  Troxus Comfort w/ Back Handle
• Seat Post:
  Alloy, 30.9 × 400mm, Adjustable
• Seat Post Clamp:
  Alloy, 35mm w/ Quick Release
• Stem:
  Alloy, BMX Style, Top-Load, 30-Degree Angle,
  50mm Extension
• Handlebar:
  Alloy 6061-T6, 31.8mm × 680mm Wide, 261mm Rise
• Grips:
  Ergonomic Comfort
• Pedals:
  9/16″ Alloy Platform with Reflectors
• Headset:
  Threadless, Locking Internal 1-1/8″
• Rear Shocks:
  N/A
• Rack:
  Semi-Integrated Alloy Rear Model /
  MIK-Compatible Rear Rack
• Fender:
  Alloy, 20″ × 4.0″ w/ Alloy Hardware
• Kickstand:
  Adjustable Side Kickstand

• Max Speed:
  Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
• Range:
  Up To 90 Miles Per Charge
• Weight Limit:
  Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
• Net Weight:
  77.2 lbs
• Warranty: 5 Years
