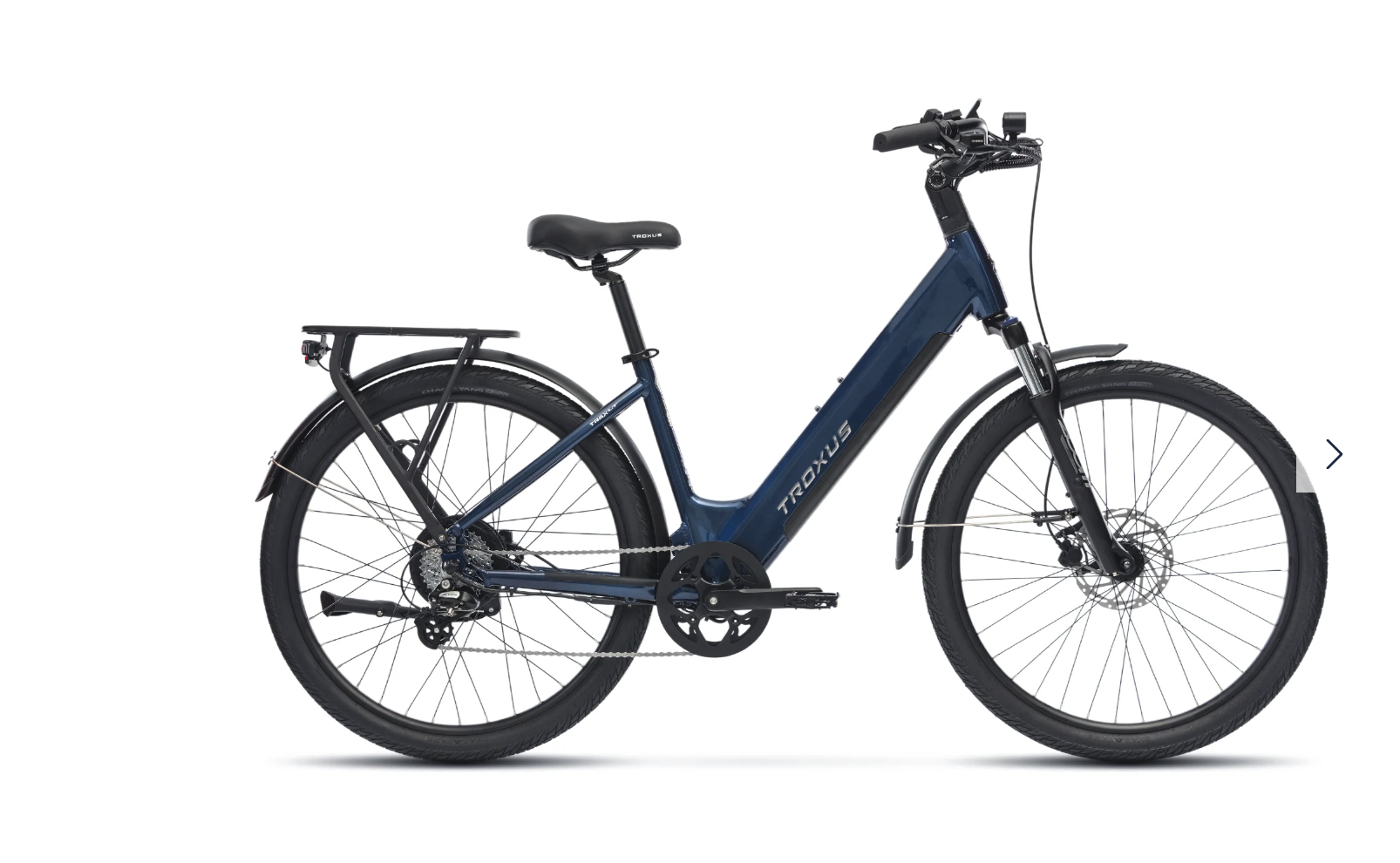

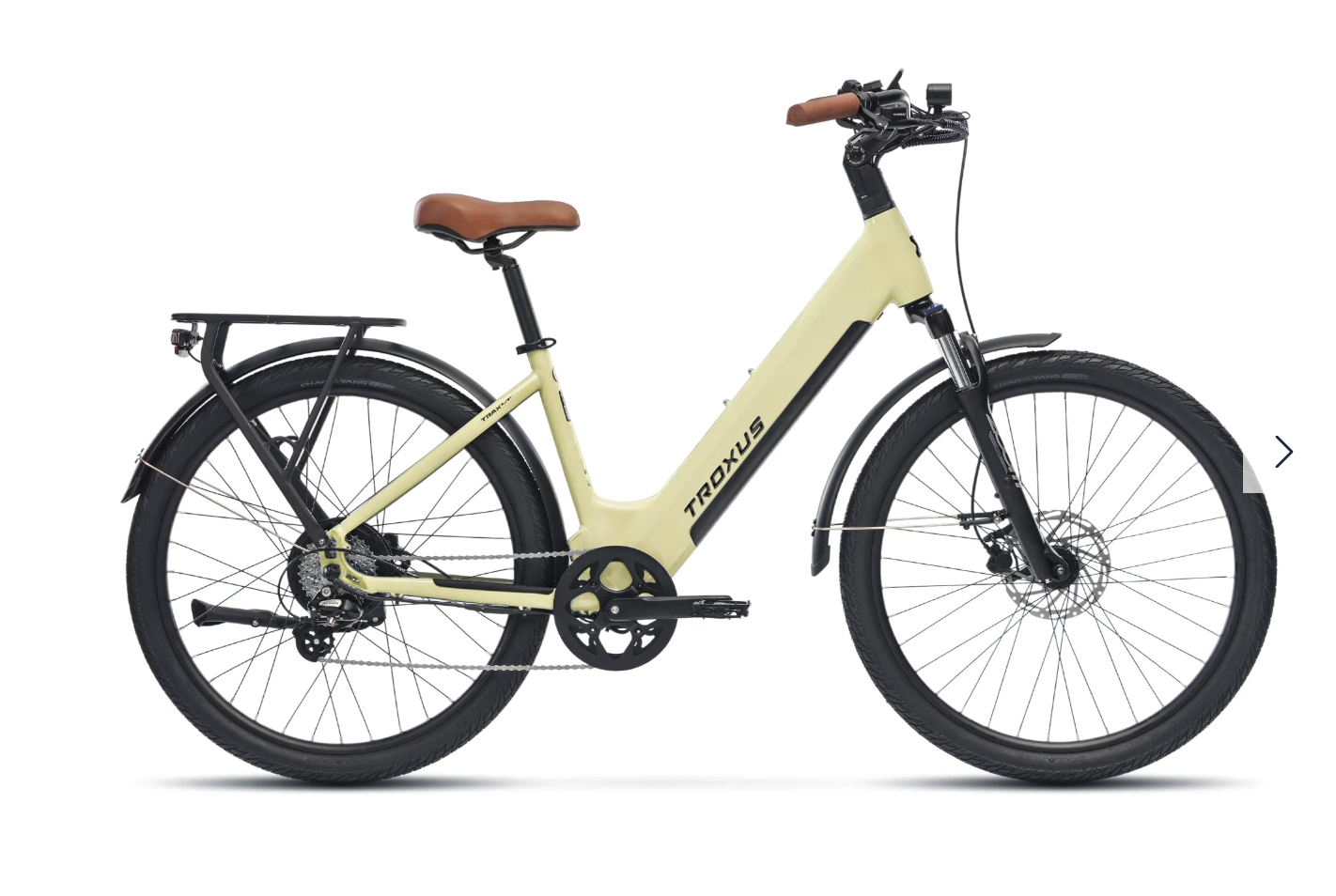

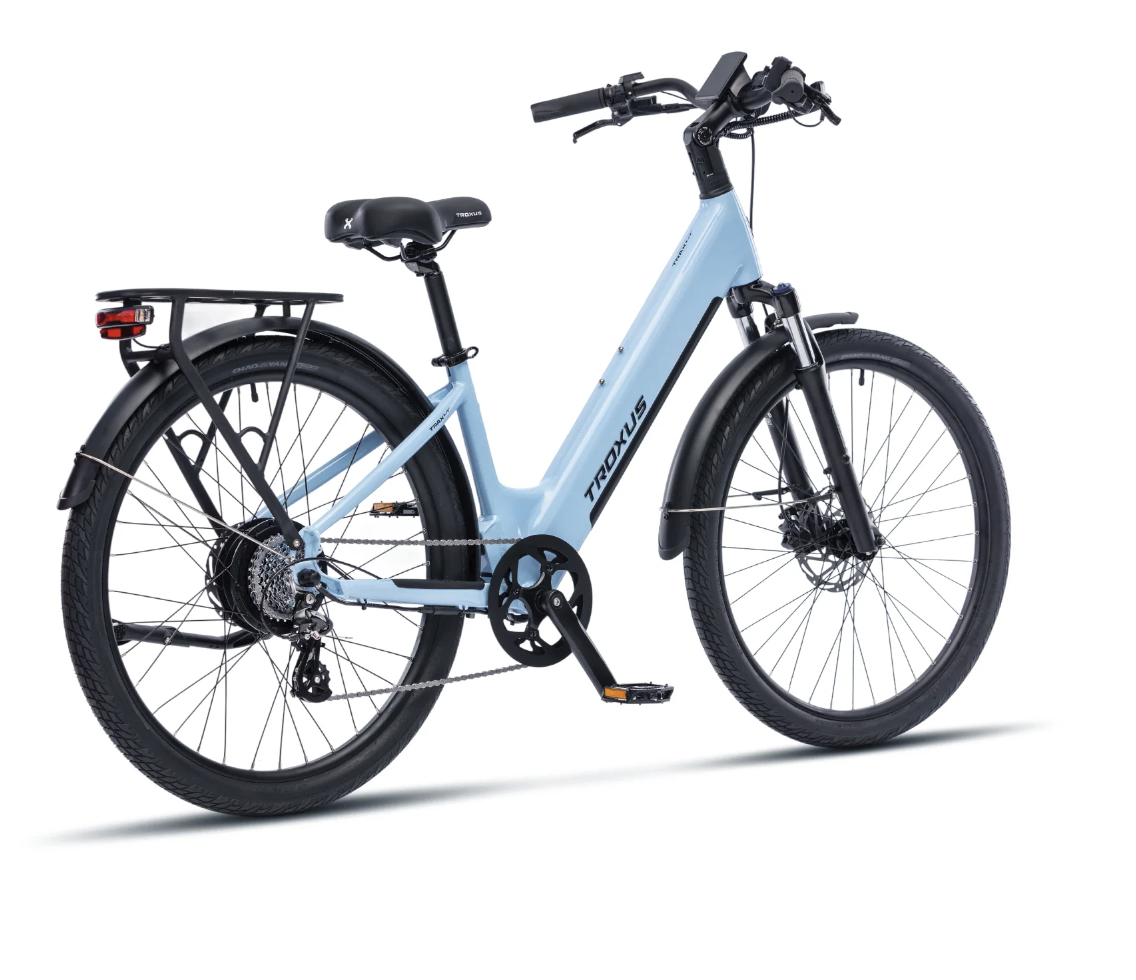

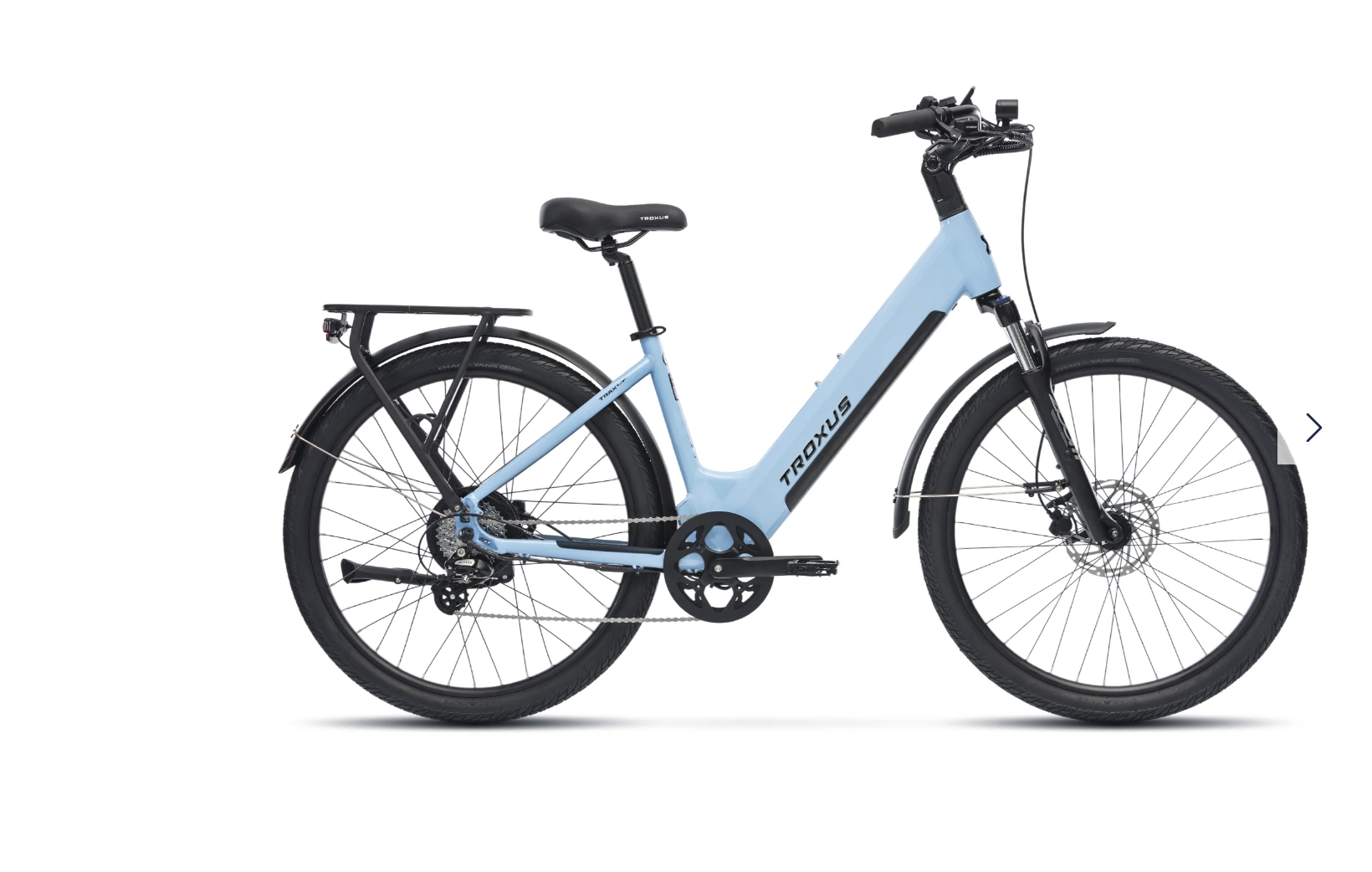

Troxus Trax LT IQ Step Thru Electric Bike
The Trax LT iQ lightweight e-bike is designed for riders who want easy handling, smooth commuting, and practical daily use. With a 57 lbs lightweight frame, smooth pedal assist, and Ride iQ smart protection, this e-bike simplifies city riding, carrying, and storage without sacrificing comfort or reliability.
-
Motor: Jiabo® 48V 500w+ Peak Power Hub-Drive Motor, 50Nm. Peak Torque
-
Battery: UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/10Ah (480Wh) with Samsung® Cells, w/ Option for Additional 240Wh Piggy-Back Battery
-

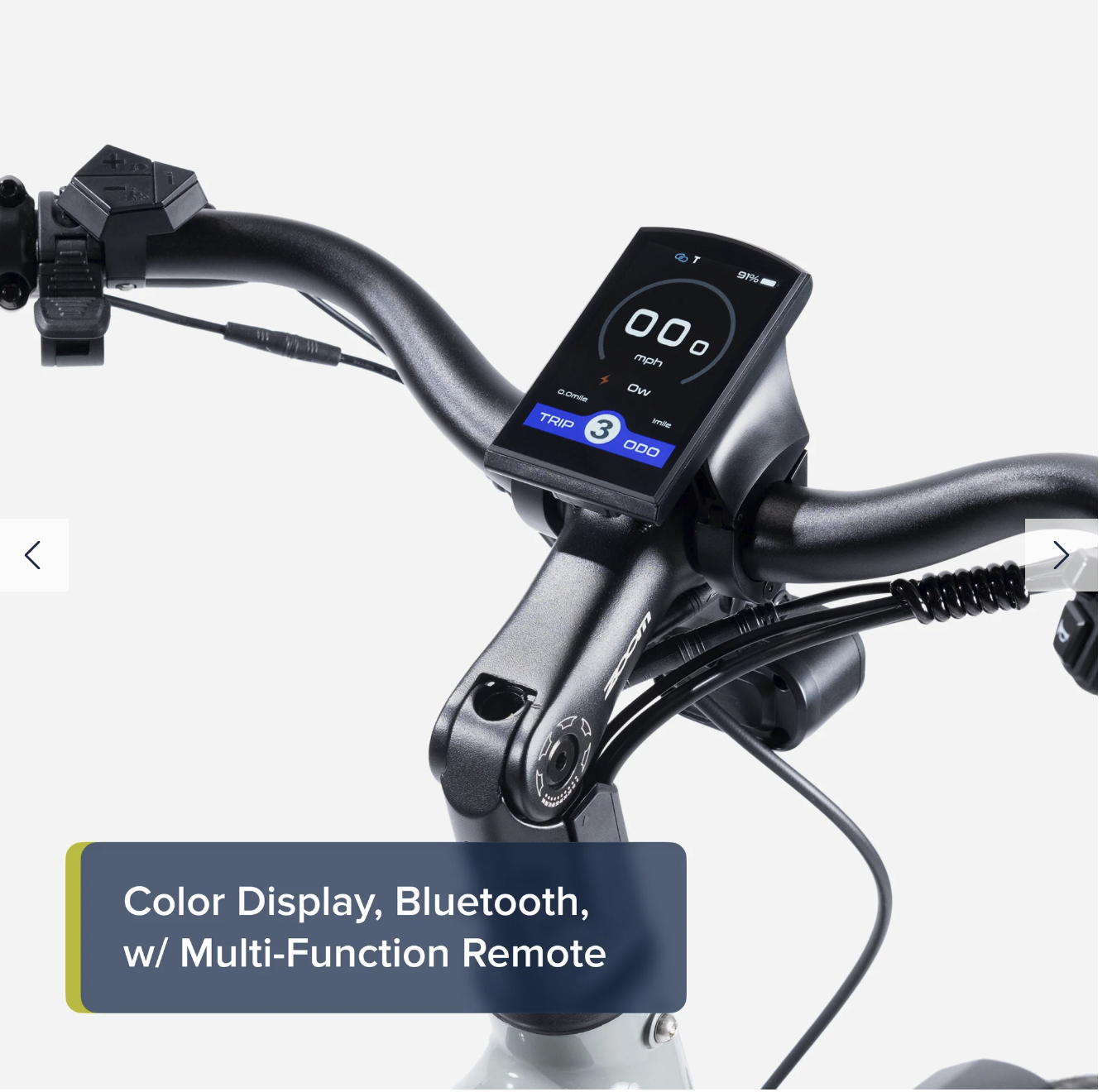

Display: Troxus Ride iQ 1.0 Android / Apple. Color Display, Bluetooth, w/ Multi-Function Remote
-
Throttle: Thumb Throttle on Handlebar
-
Sensor: Switchable Torque And Cadence Sensor Modes
-
Pedal Assist: 0~5 Level Pedal Assist
-
Charger: 2A / 100-240V Input / 54.6V Output
-
Lights: 30 Lux Front Light, Rear Light
-
Controller: 48Vx15A/12V
-
Frame: Hydroformed Aluminum Step-Thru Lightweight Frame
-
Fork: Zoom® Front Suspension Fork, 65mm Travel
-
Chain: KMC® 1/2″x3/32″
-
Crankset: Aluminum, 44T, w/ Alloy Chainring & Single Chainguard, Square Taper, 170mm
-

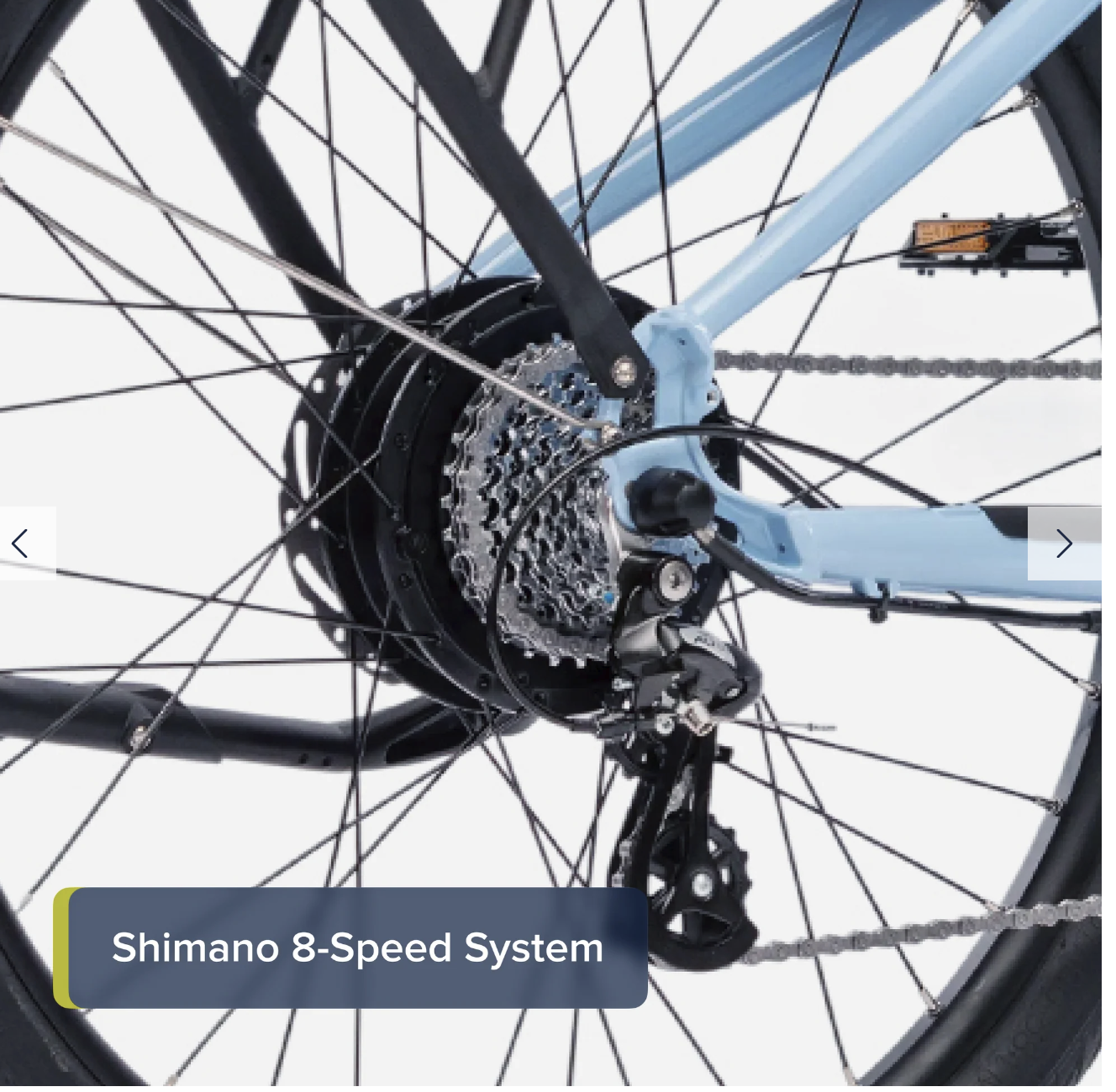

Rear Derailleur: Shimano® RD-M310-L, Altus, 8-Speed
-
Cassette: Shimano® 8-Speed, 12-32T
-
Shifter: Shimano® 8-Speed
-
Bottom Bracket Set: Square Taper Sealed Bearings, Torque & Cadence Sensors Included
-
Tires: KENDA® KWICK SEVEN-5 27.5″x2.2″
-
Front Hub: Alloy, 36H,100mm, 3/8″Axle
-
Rear Hub: Jiabo® 48V 500W/ 20 MPH, 50Nm. Peak Torque
-
Rims: Alloy Double Wall, 27.5″x2.0″ w/ Eyelets
-
Spokes: Stainless 14G. Front / 13G. Rear
-
Brakes: Tektro® Hydraulic, w/ Brake Sensors
-
Rotors: 180mm / 180mm
-
Saddle: DDK DE-430 Comfort / 200mm Wide
-
Seat Post: Alloy, 30.9x400mm, Adjustable
-
Seat-Post Clamp: Alloy, 35mm w/ Quick Release
-
Stem: Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing
-
Handlebar: Zoom® Alloy, 31.8mmx650mm Wide, 35º Backsweep
-
Grips: Ergonomic Comfort
-
Pedals: 9/16″ Alloy Platform with Reflectors
-
Headset: Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing
-
Rear Shocks: N/A
-
Max Speed: Up To 20 MPH
-
Range: Up To 55 Miles Per Charge / Up to 80+ Miles w/Extra Battery
-

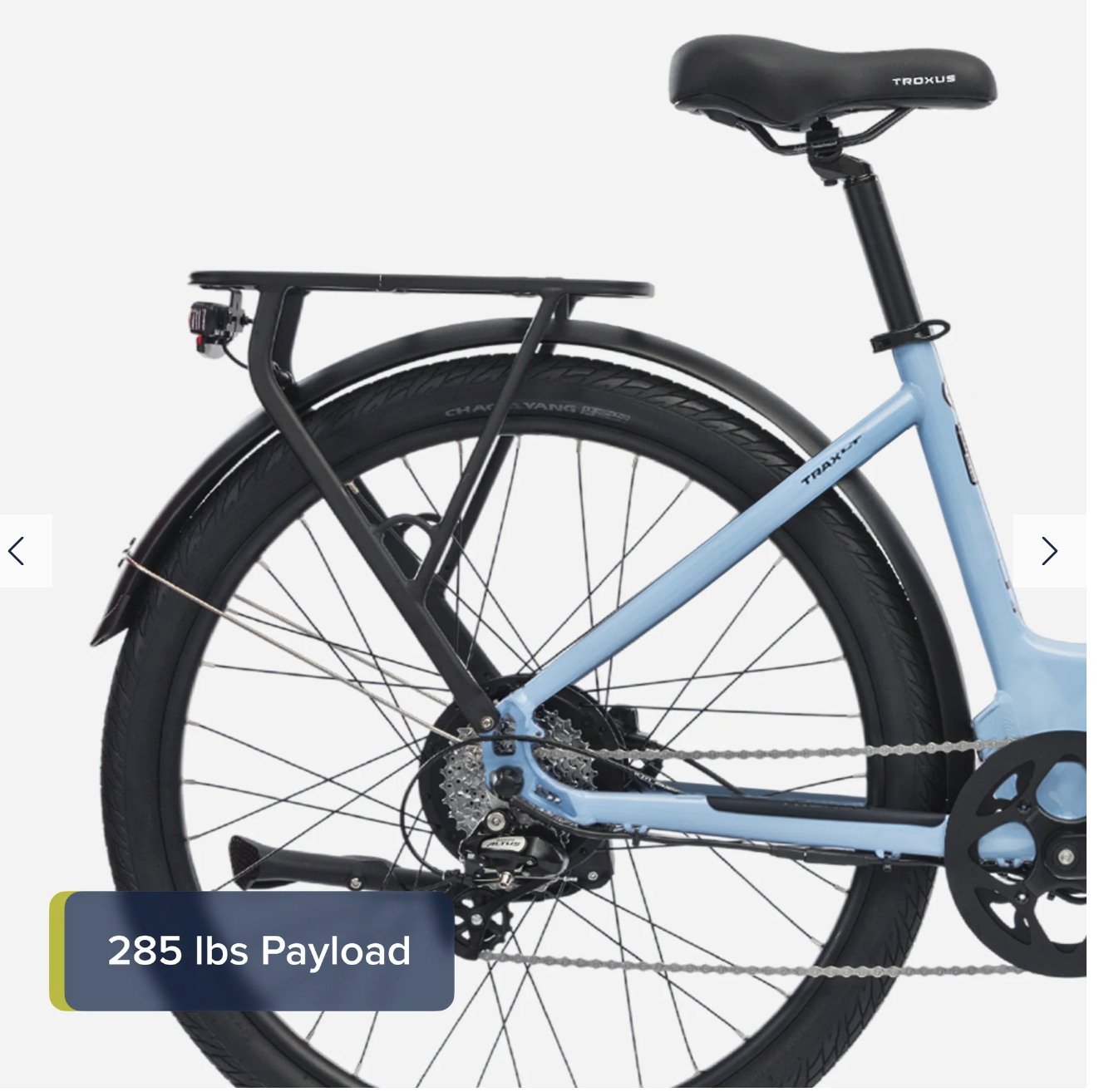

Weight Limit: Maximum Load: 285 lbs
-
Net Weight: 57 lbs
-
Rack: Lightweight Alloy Rear Model / MIK-Compatible Rear Rack
-
Fenders: Plastic, 27.5″
-
Kickstand: Adjustable Side Kickstand
-
Packaged: Above All Accessories Are Included.
- Warranty: 5 Years
