Troxus Trax Plus  IQ Step Thru Electric Bike

The Trax Plus iQ builds on one of the most trusted commuter

platforms in the Troxus lineup, combining comfort, reliability, and

everyday versatility with the added benefit of Ride iQ-compatible

smart technology.

Positioned as a premium commuter e-bike, the Trax Plus iQ is

designed for riders seeking dependable transportation for daily

travel, fitness, and recreational riding. Its upright geometry and

balanced performance characteristics make it approachable for

new riders while still offering the performance experienced cyclists

expect.

The Trax Plus iQ maintains the same proven frame design,

components, and color options currently shown on the Troxus

website. The addition of Ride iQ compatibility introduces enhanced

connectivity and expanded control functionality without changing

the ride characteristics customers already enjoy.

• Motor: Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
• Battery: UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/30Ah (1,440Wh) with Samsung® Cells

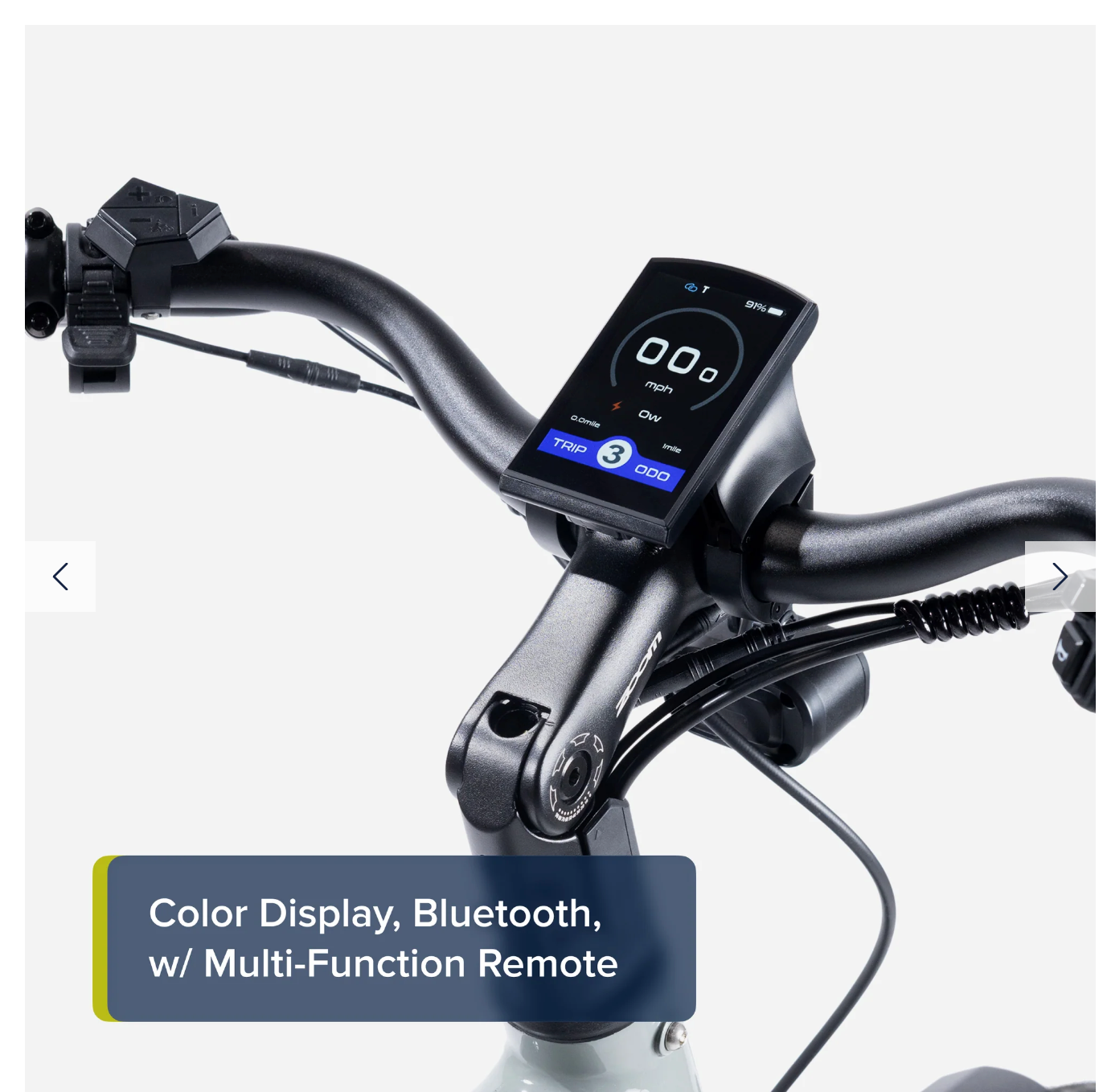

• Display: Troxus Ride iQ 1.0 Android / Apple. Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote
• Throttle: Thumb Throttle on Handlebar
• Sensor: Cadence Sensor
• Pedal Assist: 0~5 Level Pedal Assist
• Charger: 4.5A / 100-240V Input / 54.6V Output
• Lights: 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
• Controller: 48Vx18A/12V

• Frame: Aluminum Frame
• Fork: Zoom® Front Suspension Fork, 80mm Travel
• Chain: KMC® 1/2″x3/32″
• Crankset: Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
• Rear Derailleur: Shimano® RD-M310-L, Altus, 8-Speed
• Cassette: Shimano® 8-Speed, 12-32T
• Shifter: Shimano® 8-Speed
• Bottom Bracket Set: Square Taper Sealed Bearings, Cadence Sensor
• Tires: KENDA® 27.5″x2.4″, w/ Reflective Stripes, Puncture-Resistant, E-50 Rated
• Front Hub: Alloy, 36H, 100mm, 3/8″Axle w/ Nuts
• Rear Hub: Bafang® 48V 750W/ 28 MPH. 86Nm
• Rims: Alloy Single Wall Front / Double Wall Rear, 36H, 27.5″x2.4″, w/ Eyelets
• Spokes: Stainless 13G. Front / 12G. Rear
• Brakes: Tektro® Hydraulic, w/ Brake Sensors
• Rotors: 180mm / 180mm
• Saddle: Troxus Comfort
• Seat Post: Troxus w/ Suspension, Alloy 30.9x360mm, Adjustable
• Seat-Post Clamp: Alloy, 35mm w/ Quick Release
• Stem: Zoom® Alloy, Forged, Adjustable, Ext. 90mm
• Handlebar: Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep
• Grips: Ergonomic Comfort
• Pedals: Alloy, 9/16″axles, w/ BS reflectors
• Headset: Threadless, Internal 1-1/8″
• Rear Shocks: N/A
• Rack: Semi-Integrated Alloy Rear Model
• Fender: Alloy, 27.5″, Full coverage
• Kickstand: Adjustable Side Kickstand

• Max Speed: Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
• Range: Up To 120 Miles Per Charge
• Weight Limit: Maximum Load: 350 lbs
• Net Weight: 80.5 lbs.
• Warranty: 5 Years
