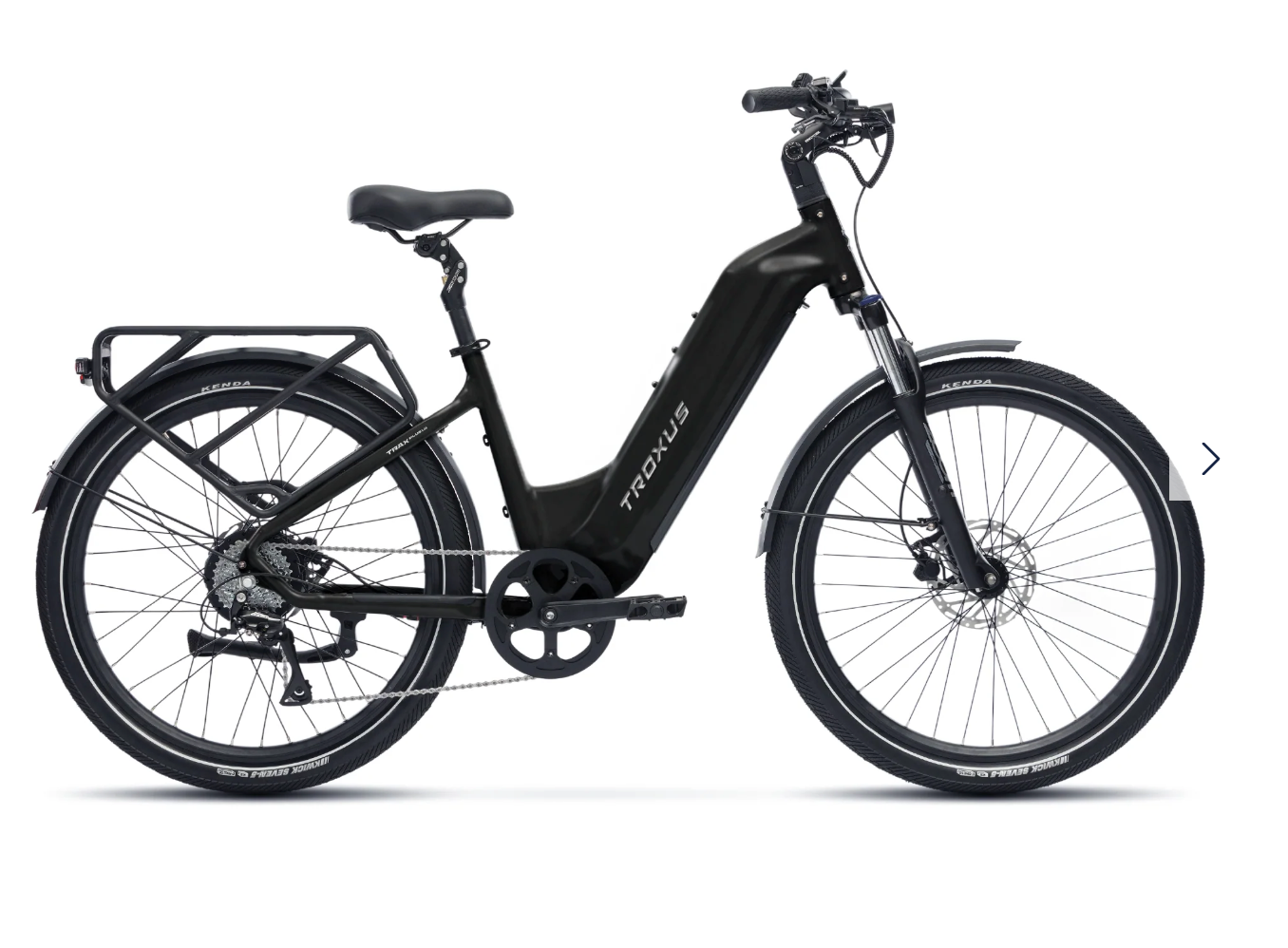

Troxus Trax Plus  LR IQ Step Thru Electric Bike

The Trax Plus LR iQ evolves from the proven Trax Plus 750/30

platform, combining high-capacity battery performance, commuter

comfort, and everyday reliability with the added benefit of Ride iQ-

compatible smart technology.

Positioned as a premium long-range commuter e-bike, the Trax

Plus LR iQ is designed for riders seeking extended range for longer

commutes, weekend exploration, and high-mileage riding. Its

upright geometry and stable ride characteristics make it ideal for

riders who prioritize comfort and dependability.

The Trax Plus LR iQ maintains the same trusted frame design,

components, and color options currently shown on the Troxus

website, while introducing Ride iQ compatibility, an updated dual-

controller system, and compatibility with a Samsung® secondary

battery that significantly increases total ride range.

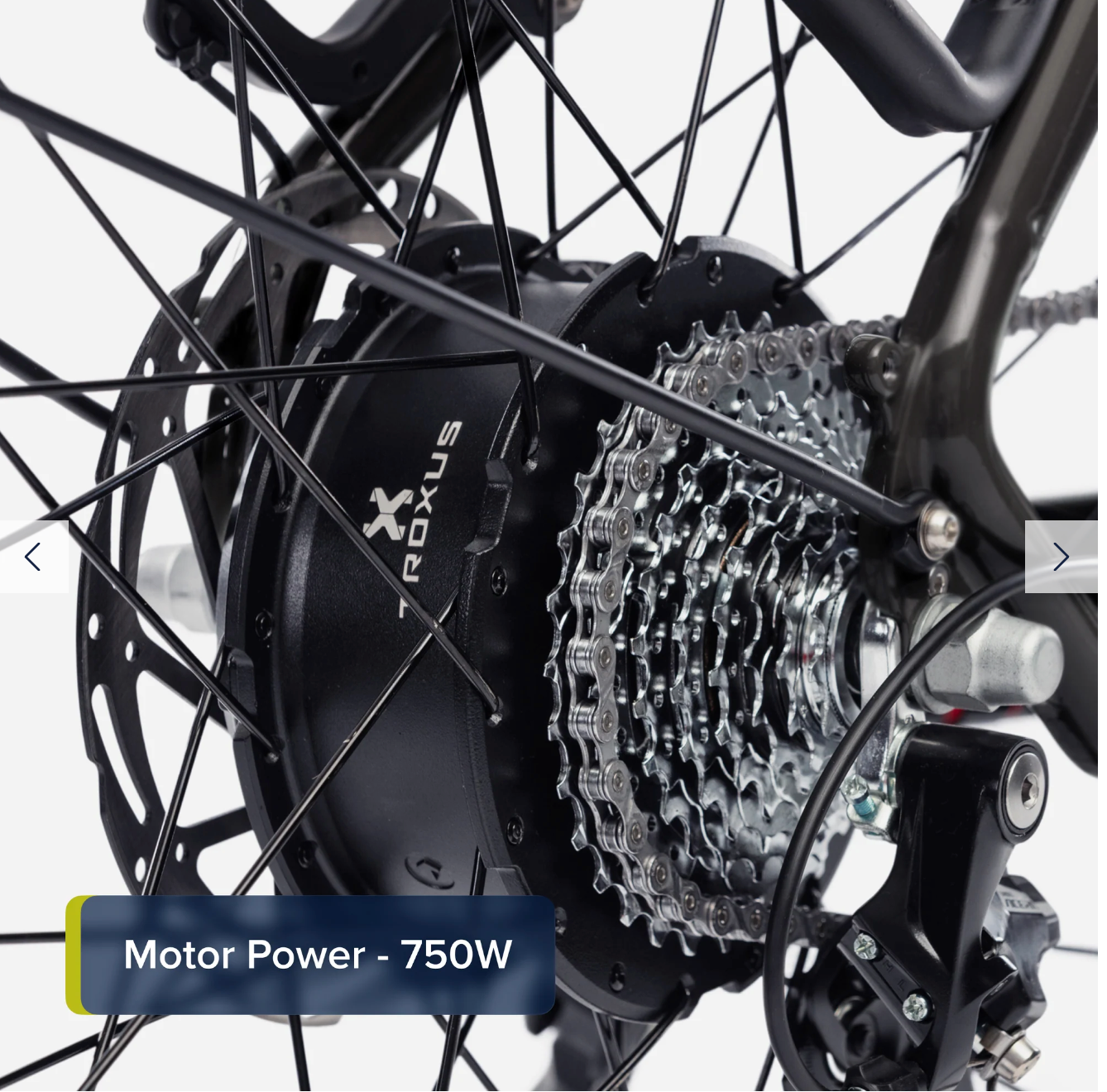

• Motor: Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
• Battery: 48V/30Ah (1440Wh) with Samsung® Cells - 48V / 14Ah (672Wh) Secondary rack battery

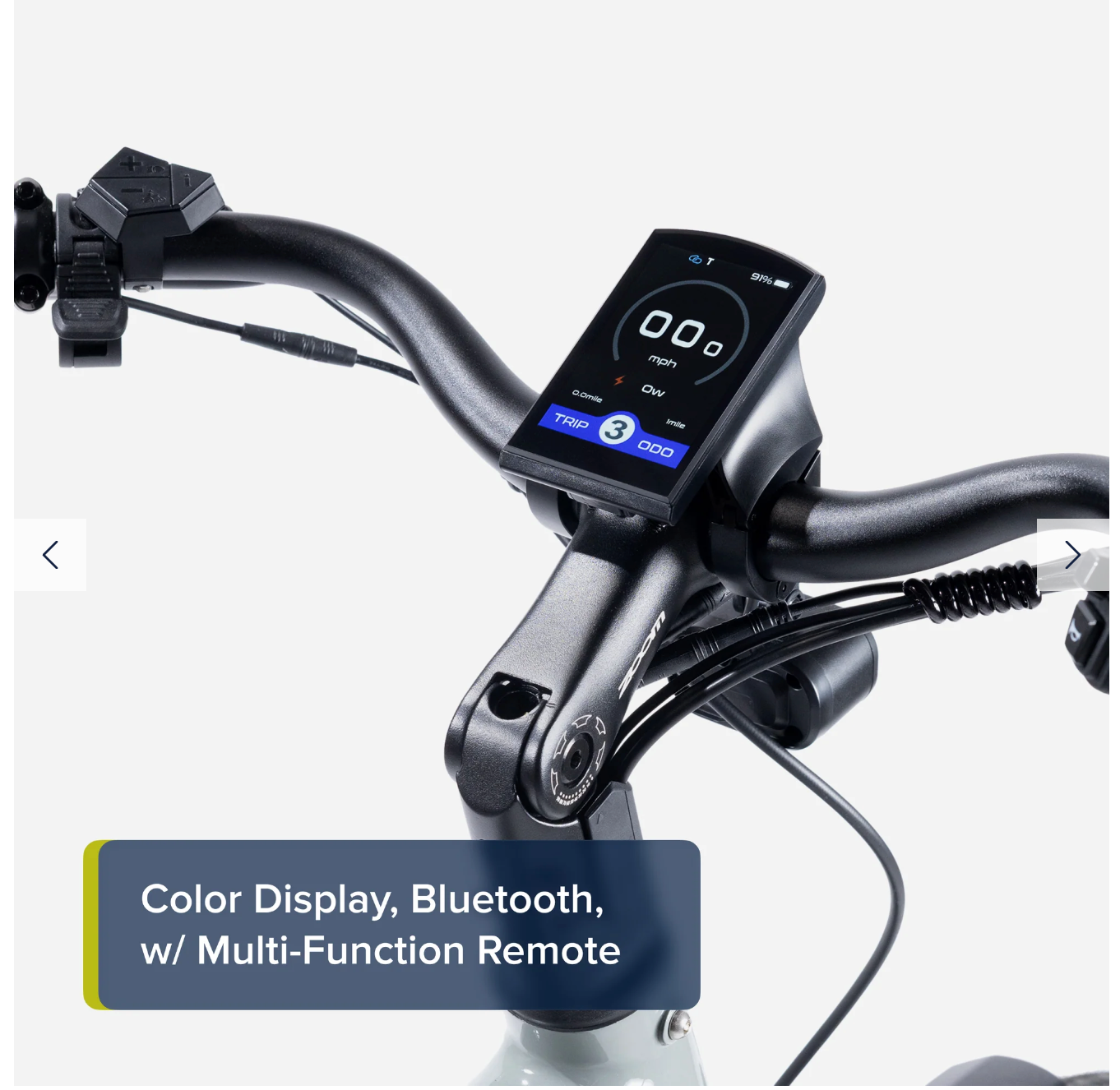

• Display: Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
• Throttle: Thumb Throttle on Handlebar
• Sensor:  Cadence Sensor Mode
• Pedal Assist: 0~5 Level Pedal Assist
• Charger: 3A / 100-240V Input / 54.6V Output
• Lights: 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
• Controller: 48Vx22A/6V

• Frame: Hydroformed Aluminum
• Fork: Zoom Suspension Fork, 80mm Travel
• Operating System: Troxus Ride IQ 1.0 Android / Apple
• Crankset: Aluminum, 170mm 48T,
• Rear Derailleur: Shimano® Acera, 8-Speed
• Cassette: Shimano® 8-Speed, 12-32T
• Shifter: Shimano® Acera 8-Speed
• Tires: KENDA®  Kwick Seven 27.5″x2.4″, w/ Anti-Puncture K-Shield
• Front Hub: Alloy, 36H, 135mm, 3/8″ Axle
• Rims: Alloy Single Wall Front / Double Wall Rear, 36H, 27.5″x4.0″, w/ Eyelets
• Spokes: Stainless 13G. Front / 12G. Rear
• Brakes: Tektro® Hydraulic, w/ Brake Sensors 203mm
• Saddle: Troxus Comfort
• Seat Post: Troxus Suspension Alloy, 30.9x350mm, Adjustable
• Stem: Zoom® Alloy, Adj Intenal Routing
• Handlebar: Zoom® Alloy 31.8mmx620mm Wide
• Grips: Ergonomic Comfort
• Pedals: 9/16″ Alloy Platform

• Max Speed: Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist Class 3
• Range: Up To 120 Miles Per Charge

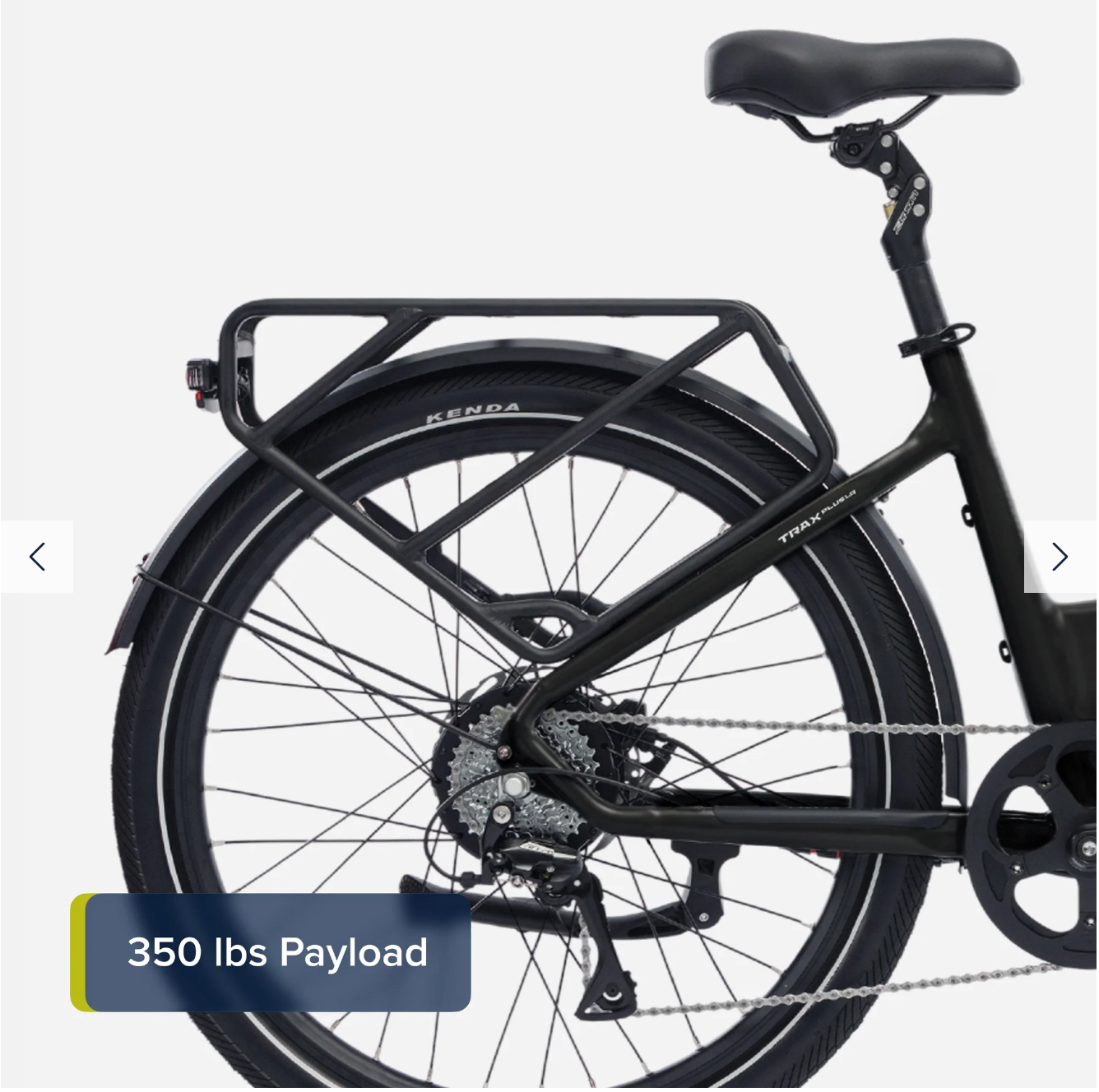

• Weight Limit: Maximum Load: 350 lbs; Maximum
• WARRANTY: 5 Year
